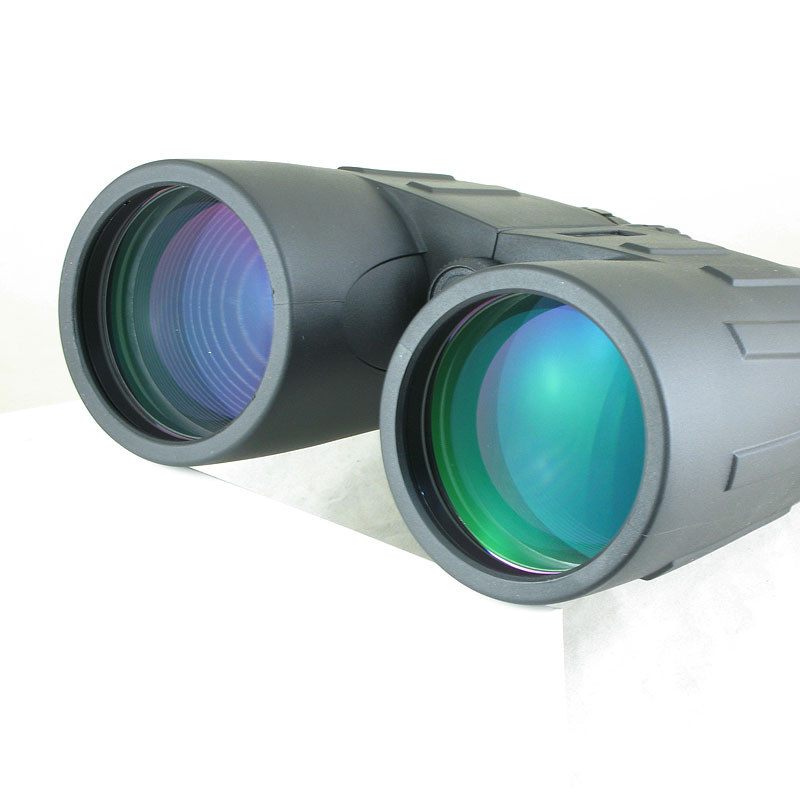

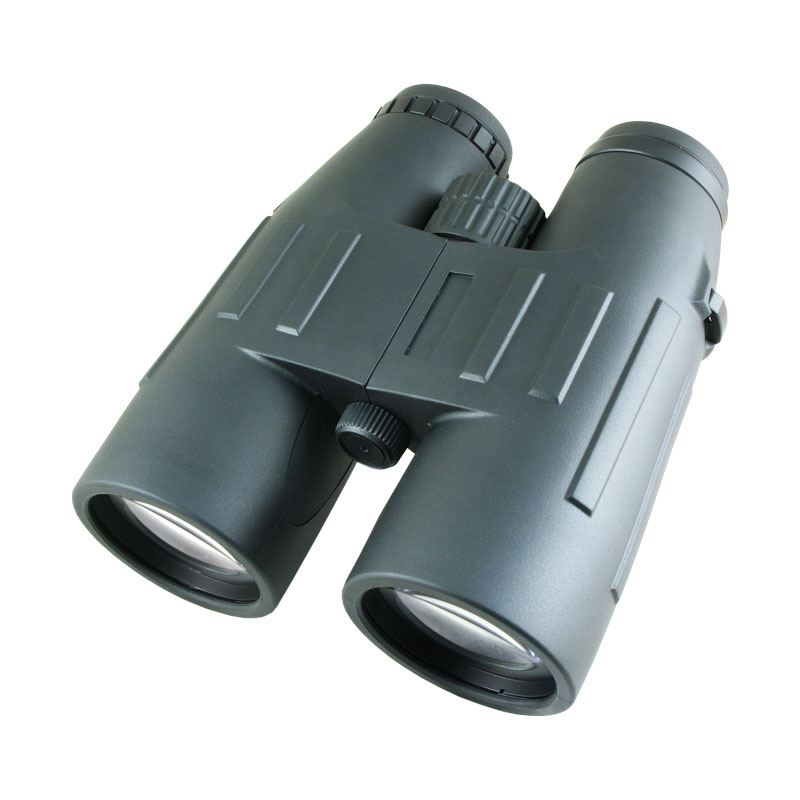

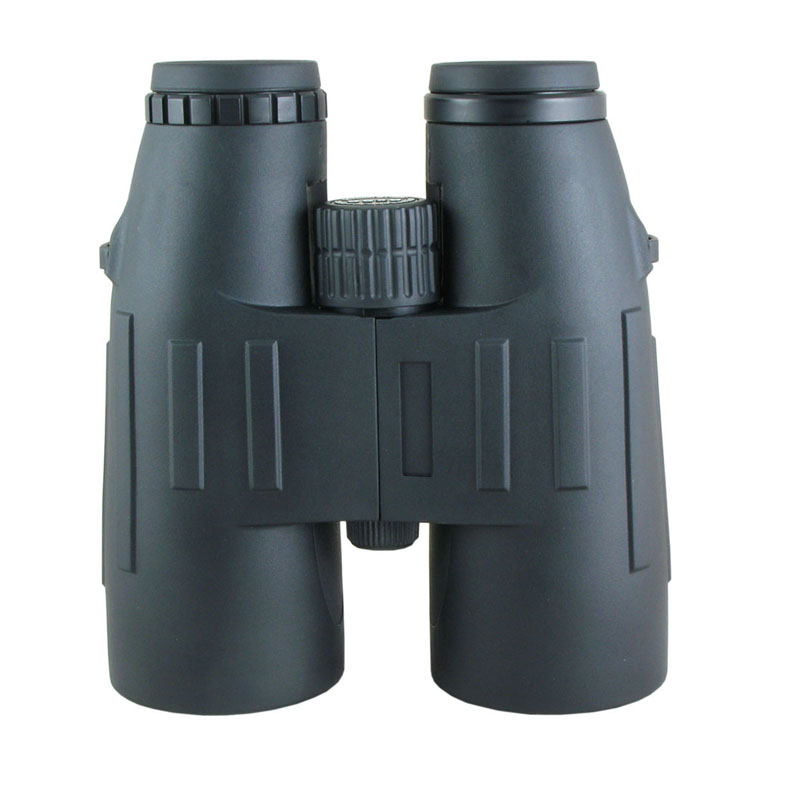

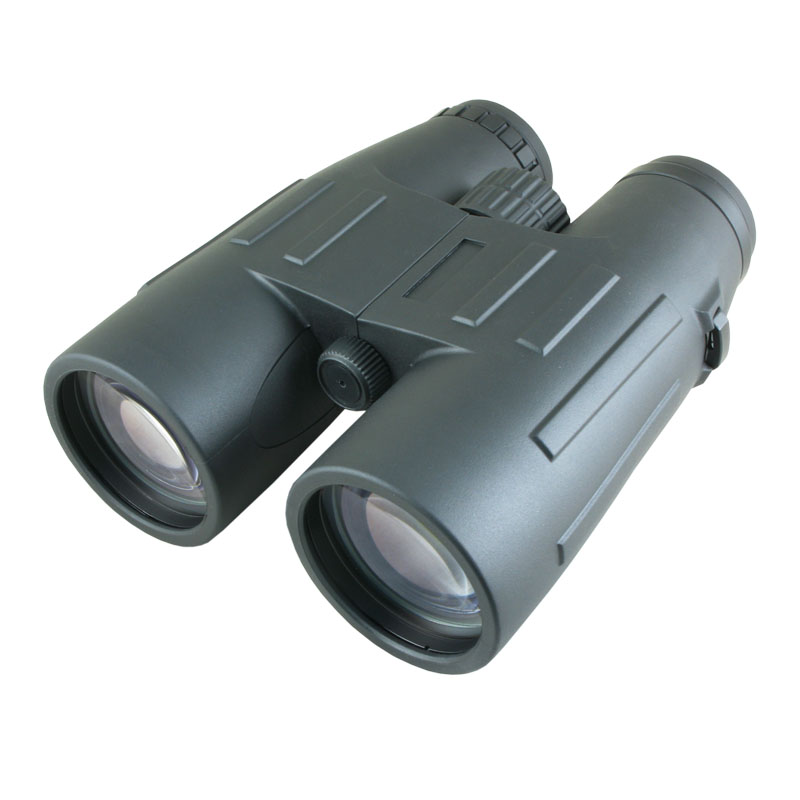

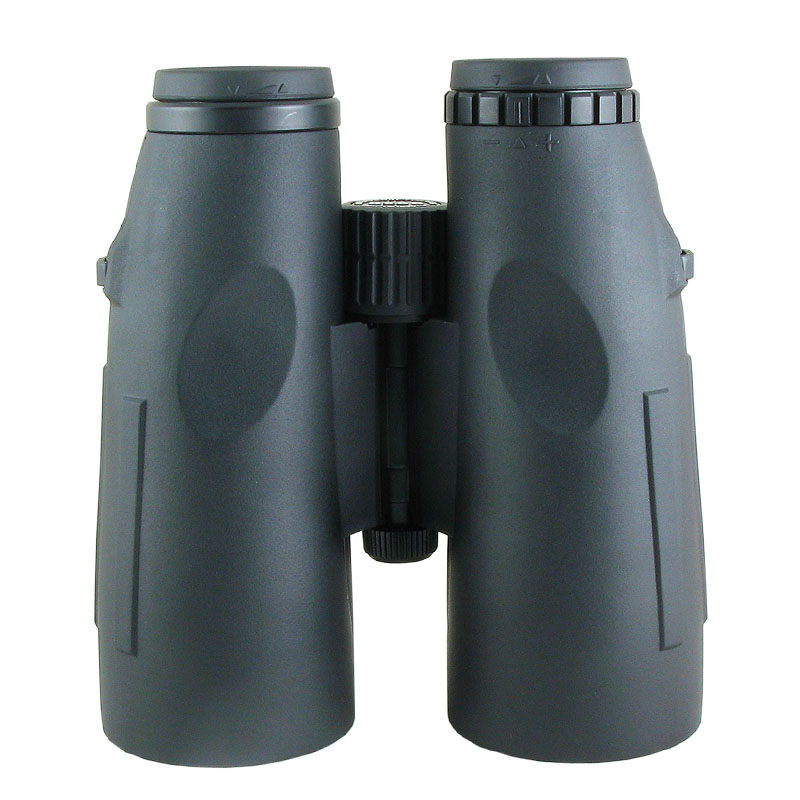

Waterproof Roof Binoculars

  • 8x56 9x63 HD
  • 8x56 9x63 HD
  • 8x56 9x63 HD
  • 8x56 9x63 HD
  • 8x56 9x63 HD
  • 8x56 9x63 HD
8x56 9x63 HD 8x56 9x63 HD 8x56 9x63 HD 8x56 9x63 HD 8x56 9x63 HD 8x56 9x63 HD

8x56 9x63 HD

  • Model:BWT2323
  • Magnification: 8x
  • Objective Lens: 56 mm
  • Angle of View: 6.0°
  • Product description: The 8x56 HD Waterproof Roof Binoculars .housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water.
  • INQUIRY

Key Features :

● BAK4 Silver coated Roof Prism Design

● Fully Multi-Coated Optics

● Twist-Up Rubber Eyecups

● Nitrogen Filled, Waterproof

● Tripod-Mountable with Optional Adapter

Overview :

The 8x56mm HD renders views with minimal chromatic aberration, exceptional color fidelity, edge-to-edge sharpness, and optimal light transmission through the use of high definition glass, an index-matched lens configuration, Fully multi-coated lens coatings, phase-correcting roof prisms.  The housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water.  They are rubber armored for non-slip and durable protection, and is equipped with a large focusing knob that is easy to use even while wearing gloves.  Twist-down eyecups accommodate users who wear glasses.  For hands-free use or the steadiest view.

Optical Performance:

● 8x magnification

● 56mm objective lenses

BAK4 Silver coated Roof Prism Design

● Fully multi-coated lenses increase transmission, clarity, and brightness

● 315' field of view at 1000 yards

Use and Handling :

● Open bridge configuration reduces weight

● Bridge design provides more gripping surface for steadier handling

● Right-eye dioptric correction

● Twist-up eyecups for comfortable use with or without eyewear

● 17.5 mm eye relief

● 7.0 mm exit pupil

Construction Details :

● O-ring sealed housing for waterproof and fogproof performance

● Matte-black rubber armor protects against bumps and impacts

● Includes case and neck strap

Performance :

Model BWT2323 BWT2323
Specification 8x56mm 10x42mm
Magnification 8x  10x
Objective Lens 56 mm 42 mm
Angle of View 6.0° 6.8°
Field of View 105 m @ 1000 m 120 m @ 1000 m
Field of View 315 ft @1000 yd 360 ft @1000 yd
Minimum Focus Distance 3 m 3 m
Exit Pupil 7.0 mm 4.2 mm
Eye Relief 17.5 mm 17.5 mm
Diopter Adjustment Yes / ±4 Yes / ±4
Focus Type Center Center
Prism Type Roof (Bak4-Silver coated) Roof (Bak4-Silver coated)
Lens Coating Fully Multi Fully Multi
Eyecups Twist-Up Twist-Up
Waterproof Yes / IPX-7 Yes / IPX-7
Weight 1145 g 1245  g
Size 155x68x170 mm 160x70x180 mm
