  • Model:BSZ5582
  • Magnification:20x -80x
  • Objective Lens:28 mm
  • Angle of View:1.7° - 0.7º

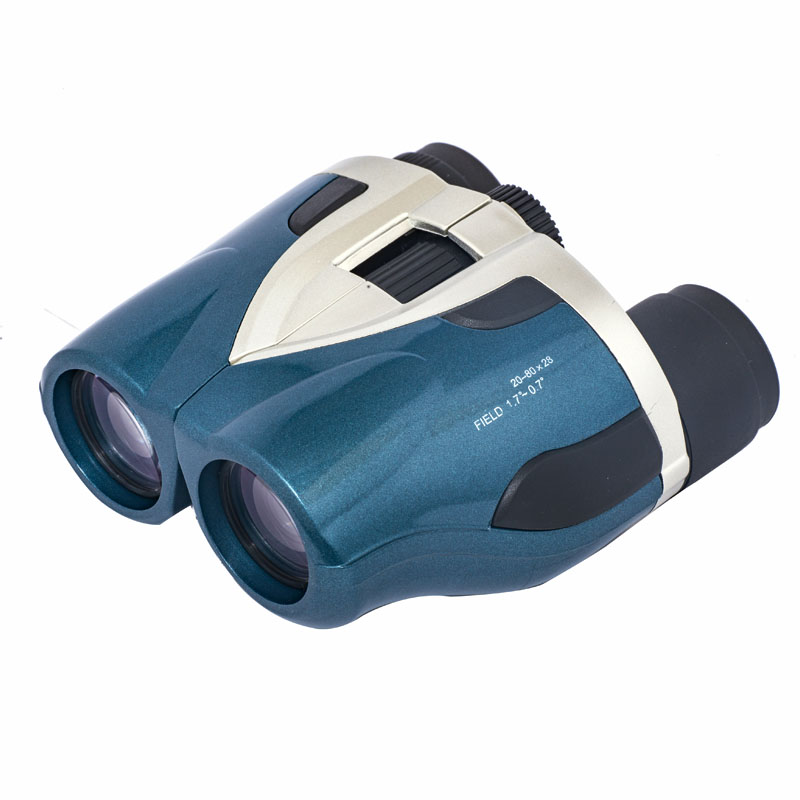

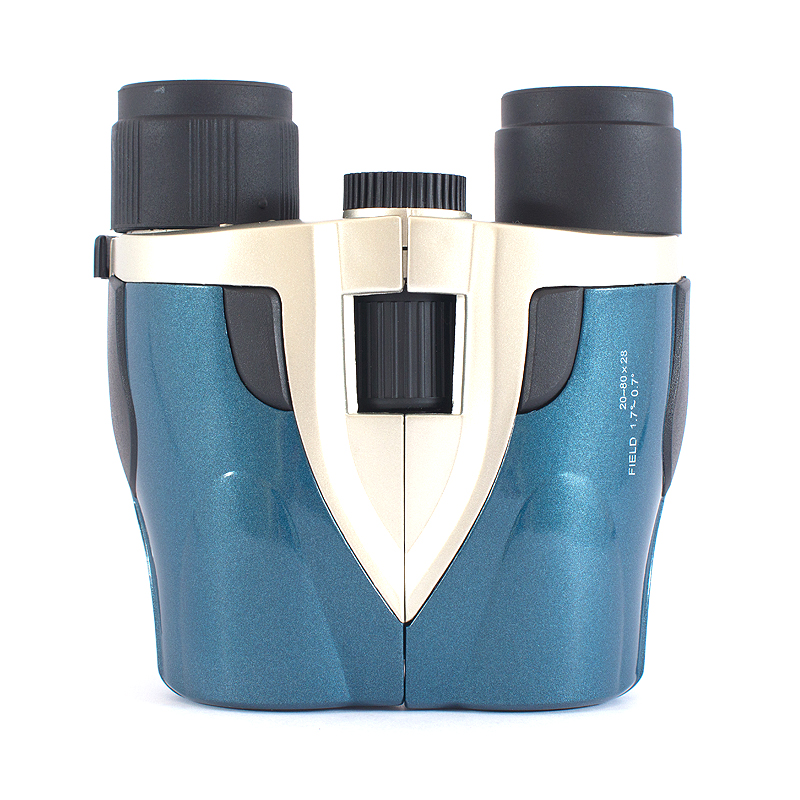

  • Product description: The 20-80x28 Zoom Binoculars from are designed for long distance terrestrial viewing.
  • INQUIRY

Key Features :
● BK7 Reverse-Porro Prisms
● Compact Reverse Porro Prism Design
● Fully Multi-Coated Optics
● Exceptionally Wide Zoom Range
● Fold-Down Rubber Eyecups
● Center Focus Knob
Overview :
The 20-80x28 Zoom Binoculars from are designed for long distance terrestrial  viewing.   The variable magnification range of the binoculars allow the viewer to scan a large field of view and then zoom in on the selected object for a closer and greater detailed look. A zoom thumb-lever for making quick and smooth magnifications is featured.  Zoom 20-80x magnification, 28mm objective lenses, and an included tripod adaptor for a steady view, contribute to binoculars that are ideal for all outdoor activities and sporting events.
Optical Performance:
● Wide 20-80x zoom range
● 28 mm objective lenses
● Compact reverse-Porro prism design
● Multi-Coated  optics ensure images are bright and clear with improved contrast and accurate color representation

● Wide 34°- 56°apparent angle of view
● 90 ft(20x) to 36.6 ft (80x) foot field of view at 1000 yards
Use and Handling :
● Large center focusing wheel is easy to manipulate, even when wearing gloves
● Right-eye dioptric correction enables users to compensate for individual optical prescription

● Fold-Down  rubber eyecups for comfortable use with or without eyewear
● Close 5' short-focus distance
● 1.4 - 0.35 mm exit pupil
● 10.5 - 6.5 mm eye relief
Construction Details:
● Lightweight plastic chassis
● Protective black rubber armor provides a slip-resistant grip
● Textured palm pads improve grip security
● Weight: 350 g
Performance :

Model BSZ5582 BSZ5582 BSZ5582 BSZ5582 BSZ5582
Specification 10 - 30x25mm 10 - 40x28mm 15 - 50x28mm 20 - 80x28mm 18-100X28
Magnification 10x - 30x 10x - 40x 15x - 50x 20x - 80x 18x - 100x
Obj.lens (mm) 25 mm 28mm 28mm 28mm 28mm
Field Angle 3.0°-1.6º 3.2°- 1.4° 2.0°-0.9º 1.7° - 0.7º 1.5°-0.8°
Field of View @ 1000m 56m - 28m 56M - 24M 35m - 15.7m 30m-12.2 m 26.2m-14 m
Field of View @ 1000yds 168ft -84ft 168ft - 72ft 105ft - 47ft 90ft - 36.6ft 78ft - 42ft
Apparent Field of View 30°- 48° 32°- 56° 30°- 45° 34°- 56° 27°- 80°
Closest Distance 8.0 m 8.0 m 8.0 m 8.0 m 8.0 m
Exit pupil (mm) 2.5 - 0.83 mm 2.8-0.70mm 1.86-0.56 mm 1.4 - 0.35 mm 1.55 - 0.28 mm
Eye relief (mm) 11.0 - 8.0 mm 11.0 - 8.0 mm 12.5 - 6.5 mm 10.5 - 6.5 mm 11 - 5.5 mm
Diopter Adjustment ±4 ±4 ±4 ±4 ±4
Dusk Index 15.8 - 27.3 16.73 - 33.46 20.49 - 37.41 20.49 - 37.41 20.49 - 37.41
Relative Brightness 6.25 -0.68 7.84 - 0.49 3.45 - 0.31 3.45 - 0.31 3.45 - 0.31
Prism System Porro Porro Porro Porro Porro
Prism Glass Bk7 Bk7 Bk7 Bk7 Bk7
Focus System Center Center Center Center Center
Lens Coating Fully Multi Fully Multi Fully Multi Fully Multi Fully Multi
Eyecups Fold-Down Fold-Down Fold-Down Fold-Down Fold-Down
Material of Body aluminium alloy
colour Najran Red / Blue Amber / Shallow champagne / Pearl white / Black
Size (mm) 107x55x112 mm 110x56x112 mm 110x56x112 mm 110x56x112 mm 110x56x112 mm
Weight (g) 265 g 350 g 350 g 350 g 350 g
