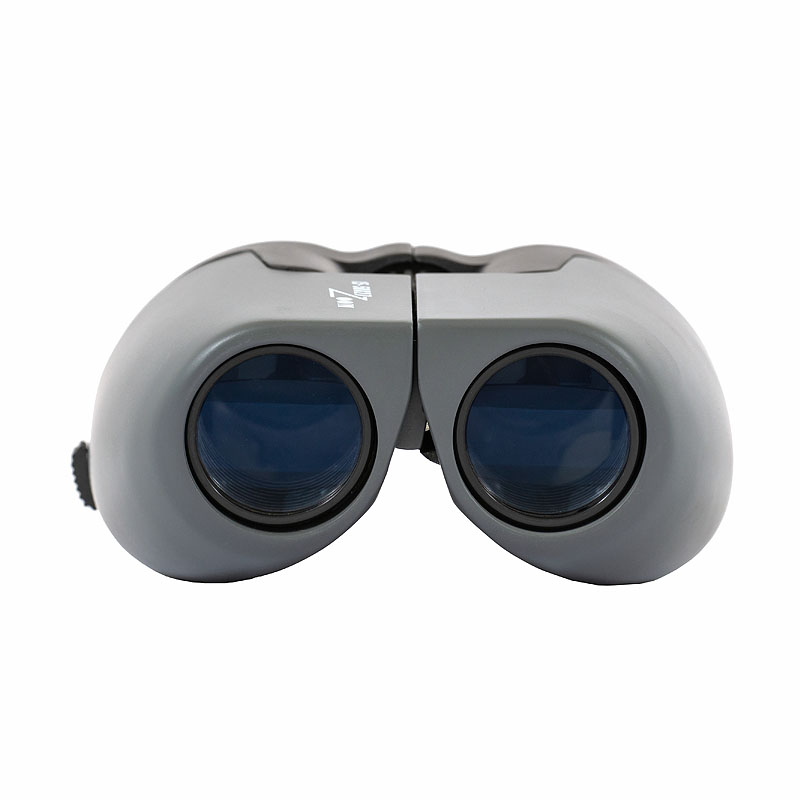

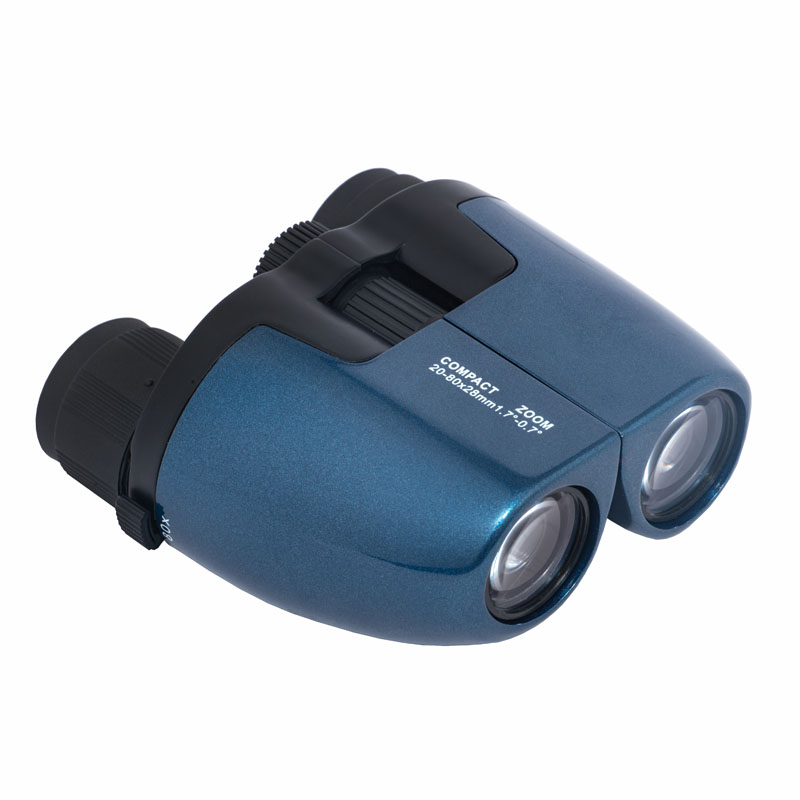

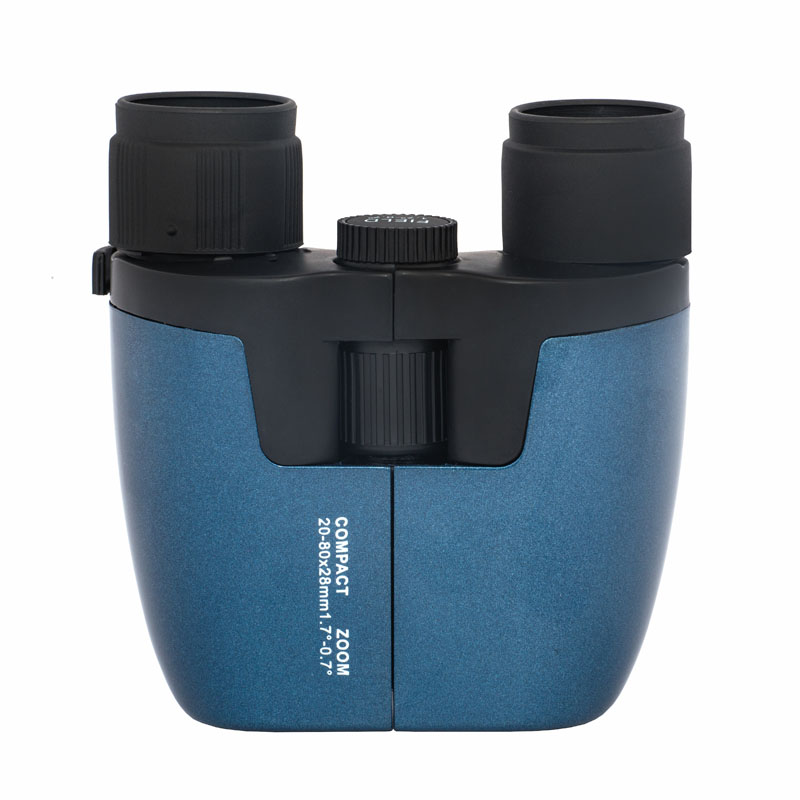

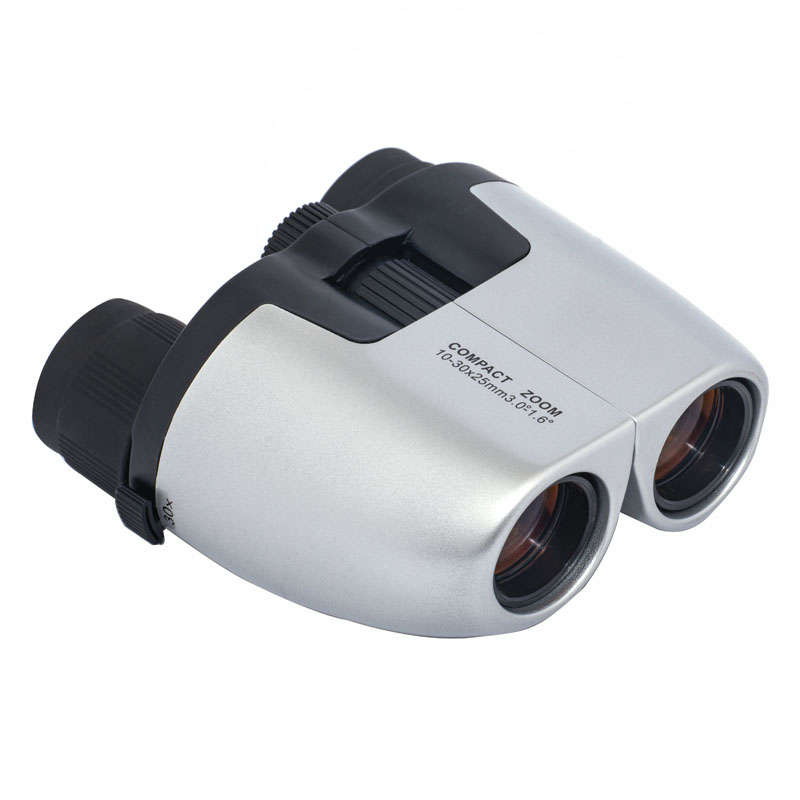

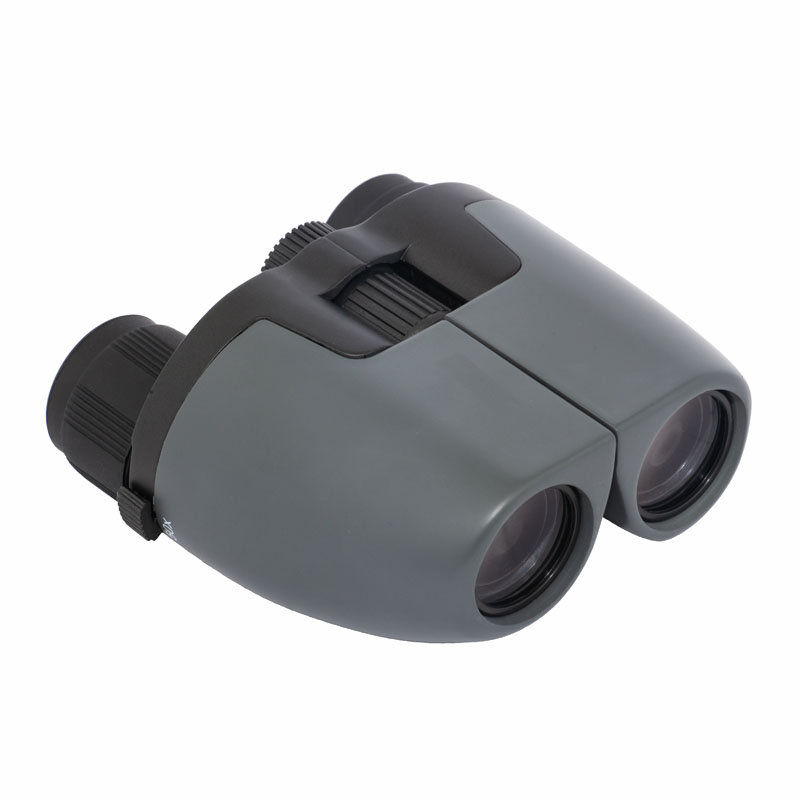

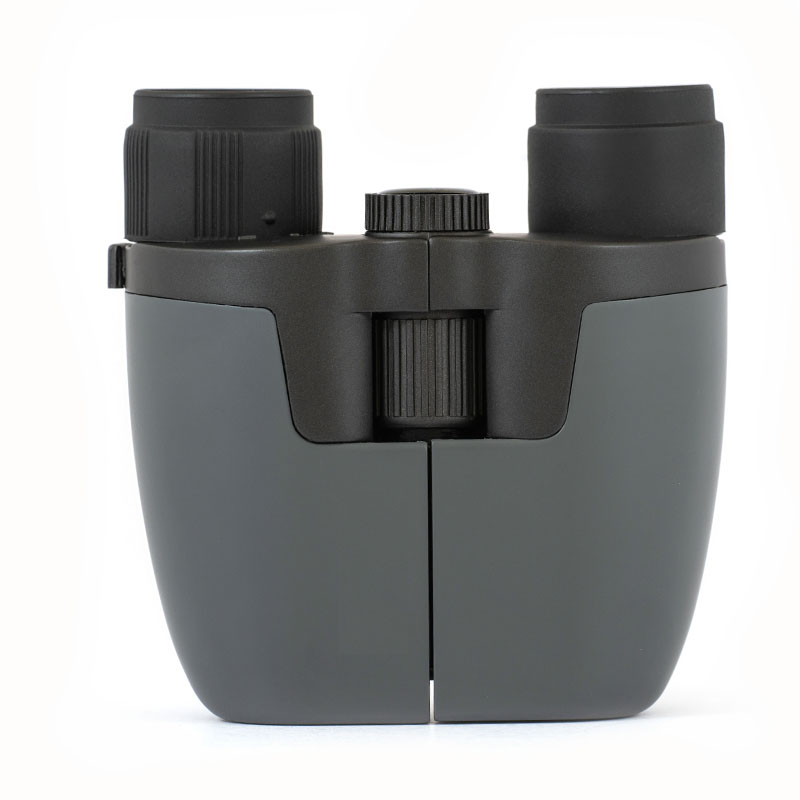

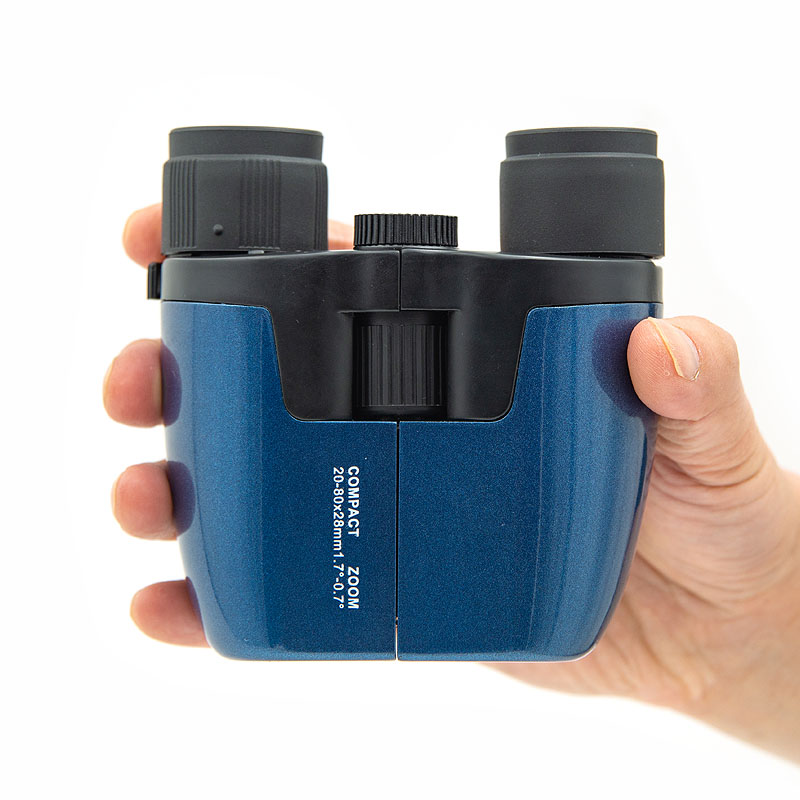

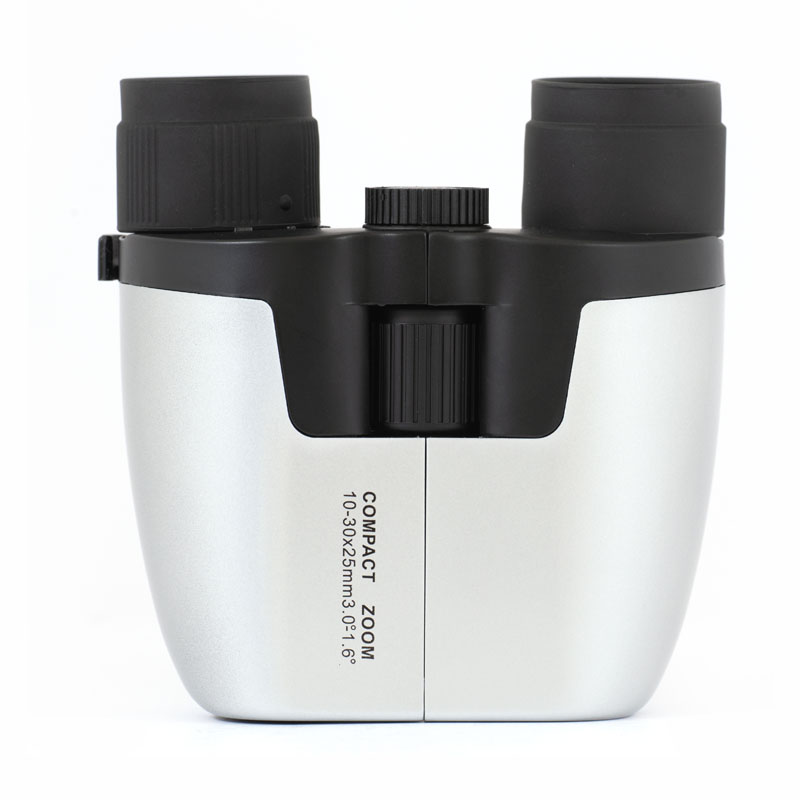

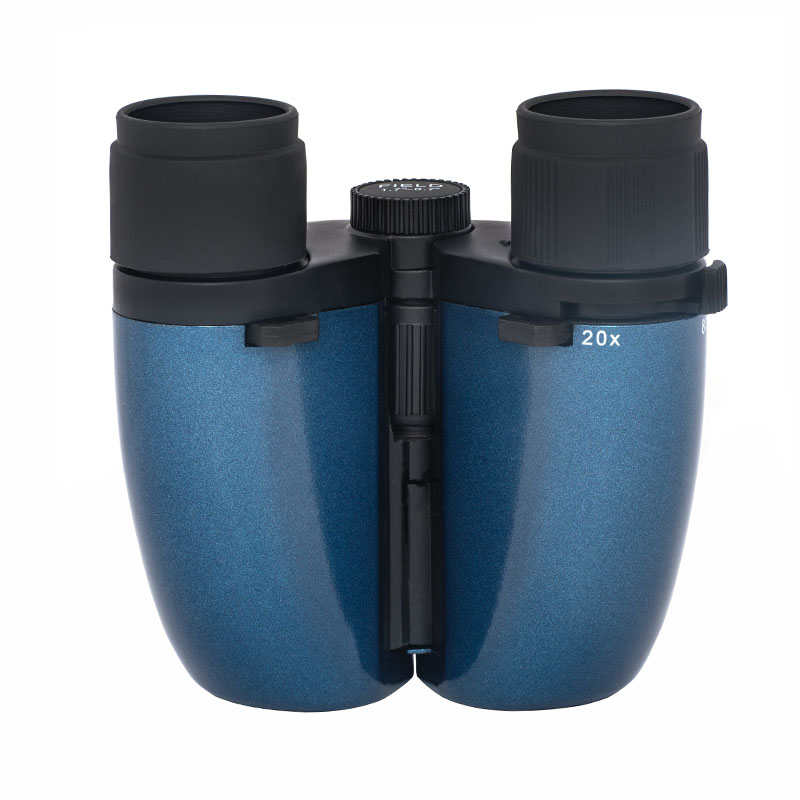

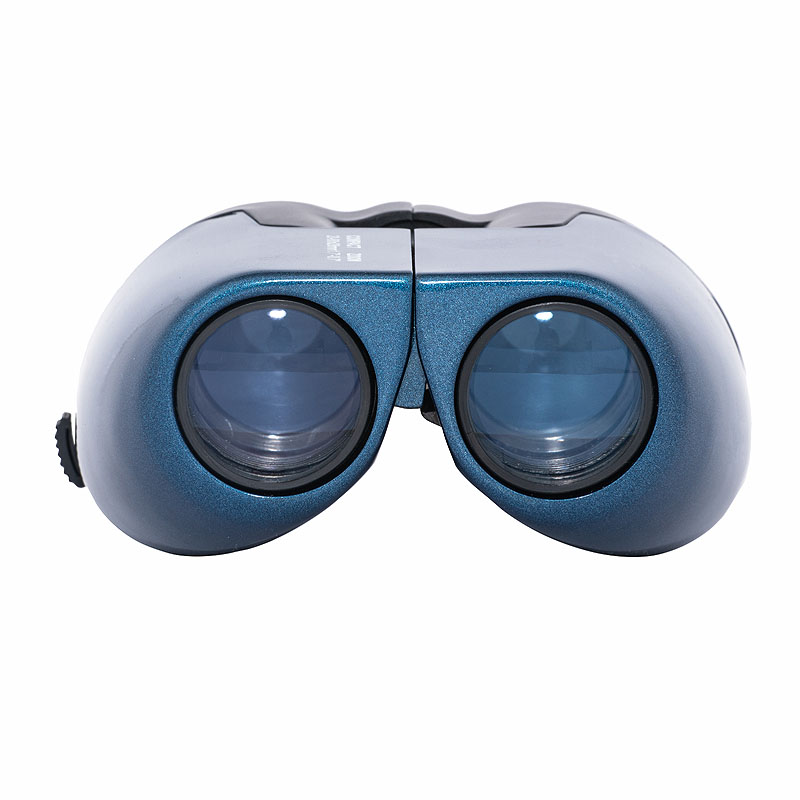

Zoom Compact Binoculars
10-30x25 10-40x28 20-80x28
- Model:BSZ5582
- Magnification:10x -40x
- Objective Lens:28 mm
- Angle of View:3.2°- 1.4°
- Product description: proprietary zoom lever, lLocated laterally to the right eyepiece, is ergonomically placed to be accessible with either hand for easier use.
Key Features :
● BK7 Reverse-Porro Prisms
● Compact Reverse Porro Prism Design
● Fully Multi-Coated Optics
● Exceptionally Wide Zoom Range
● Fold-Down Rubber Eyecups
● Center Focus Knob
Overview :
10-40x28mm Zoom Binoculars from deliver versatility and portability that easily fits in a pack, pocket, or purse. The wide 3x magnification range is well suited for medium- to long-range viewing and ideal for sightseeing and glassing on the trail or in the woods. proprietary zoom lever, lLocated laterally to the right eyepiece, is ergonomically placed to be accessible with either hand for easier use. Fold-Down eyecups help to ensure a comfortable viewing distance for almost any viewer—even if they wear eyeglasses.
Optical Performance:
● Wide 10x-40x zoom range
● 28mm objective lenses
● Compact reverse-Porro prism design
● Multi-Coated optics ensure images are bright and clear with improved contrast and accurate color representation
● Wide 30° - 56º apparent angle of view
● 168ft (10x) to 74ft (40x) foot field of view at 1000 yards
Use and Handling :
● Large center focusing wheel is easy to manipulate, even when wearing gloves
● Right-eye dioptric correction enables users to compensate for individual optical prescription
● Fold-Down rubber eyecups for comfortable use with or without eyewear
● Close 8m short-focus distance
● 2.8 - 0.7 mm exit pupil
● 11.0 - 8.0 mm eye relief
Construction Details:
● Lightweight plastic chassis
● Protective black rubber armor provides a slip-resistant grip
● Textured palm pads improve grip security
● Weight: 345 G
Performance :
Model | BSZ5582 | BSZ5582 | BSZ5582 | BSZ5582 |
Specification | 10 - 30x25mm | 10 - 40x28mm | 15 - 50x28mm | 20 - 80x28mm |
Magnification | 10x - 30x | 10x - 40x | 15x - 50x | 20x - 80x |
Obj.lens (mm) | 25 mm | 28mm | 28mm | 28mm |
Field Angle | 3.0°-1.6º | 3.2°- 1.4° | 2.0°-0.9º | 1.7° - 0.7º |
Field of View @ 1000m | 56m - 28m | 56M - 24M | 35m - 15.7m | 30m-12.2 m |
Field of View @ 1000yds | 168ft -84ft | 168ft - 72ft | 105ft - 47ft | 90ft - 36.6ft |
Apparent Field of View | 30°- 48° | 32°- 56° | 30°- 45° | 34°- 56° |
Closest Distance | 8.0 m | 8.0 m | 8.0 m | 8.0 m |
Exit pupil (mm) | 2.5 - 0.83 mm | 2.8-0.70mm | 1.86-0.56 mm | 1.4 - 0.35 mm |
Eye relief (mm) | 11.0 - 8.0 mm | 11.0 - 8.0 mm | 12.5 - 6.5 mm | 10.5 - 6.5 mm |
Diopter Adjustment | ±4 | ±4 | ±4 | ±4 |
Dusk Index | 15.8 - 27.3 | 16.73 - 33.46 | 20.49 - 37.41 | 20.49 - 37.41 |
Relative Brightness | 6.25 -0.68 | 7.84 - 0.49 | 3.45 - 0.31 | 3.45 - 0.31 |
Prism System | Porro | Porro | Porro | Porro |
Prism Glass | Bk7 | Bk7 | Bk7 | Bk7 |
Focus System | Center | Center | Center | Center |
Lens Coating | Fully Multi | Fully Multi | Fully Multi | Fully Multi |
Eyecups | Fold-Down | Fold-Down | Fold-Down | Fold-Down |
Material of Body | aluminium alloy | |||
colour | Najran Red / Blue Amber / Shallow champagne / Pearl white / Black | |||
Size (mm) | 107x55x112 mm | 110x56x112 mm | 110x56x112 mm | 110x56x112 mm |
Weight (g) | 265 g | 345 g | 345 g | 350 g |
