8x42 Reticle Compass

  • Model:BYW4448
  • Magnification: 8x
  • Objective Lens: 42 mm
  • Angle of View: 7.0 °
  • Product description: The Deep Sea Series is designed specifically for the nautical and boating enthusiast.
  • INQUIRY

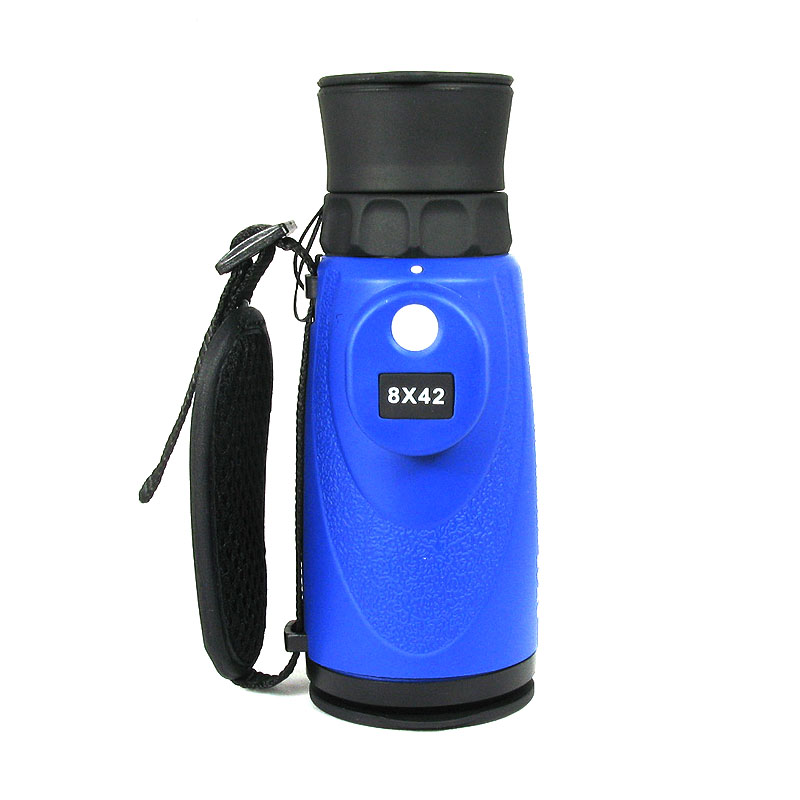

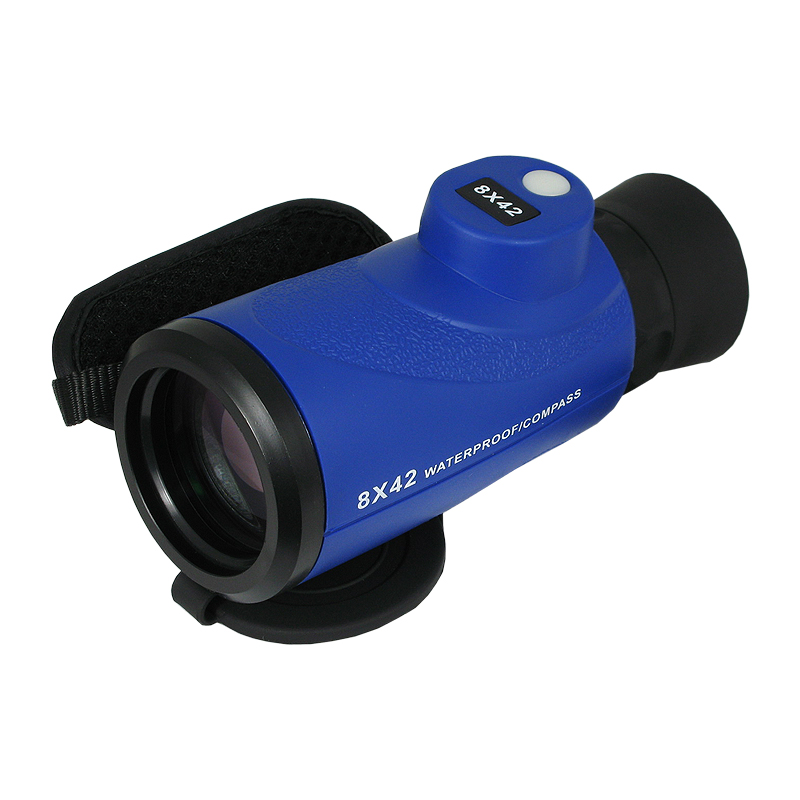

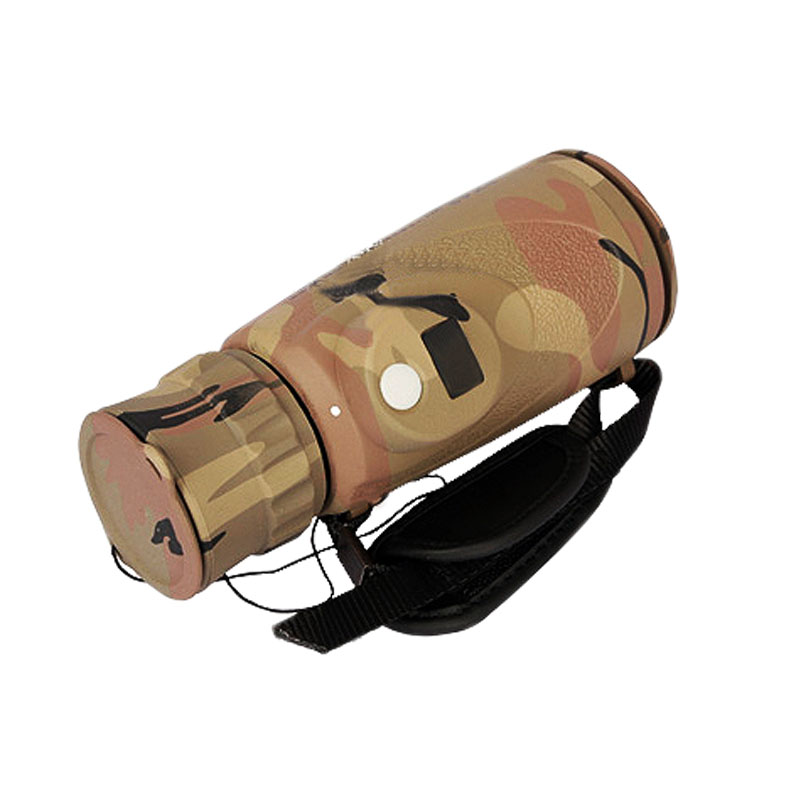

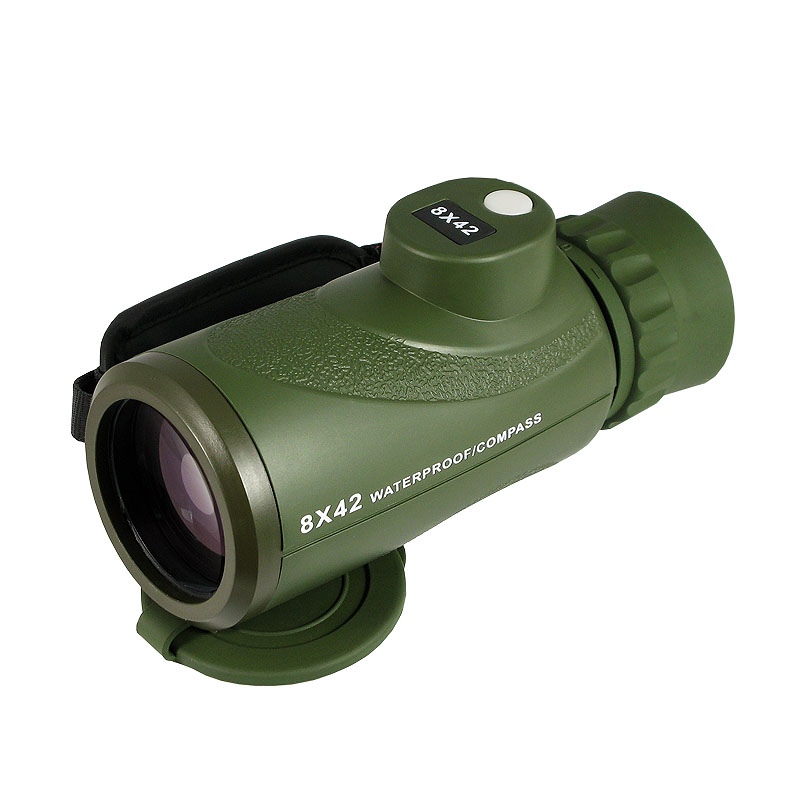

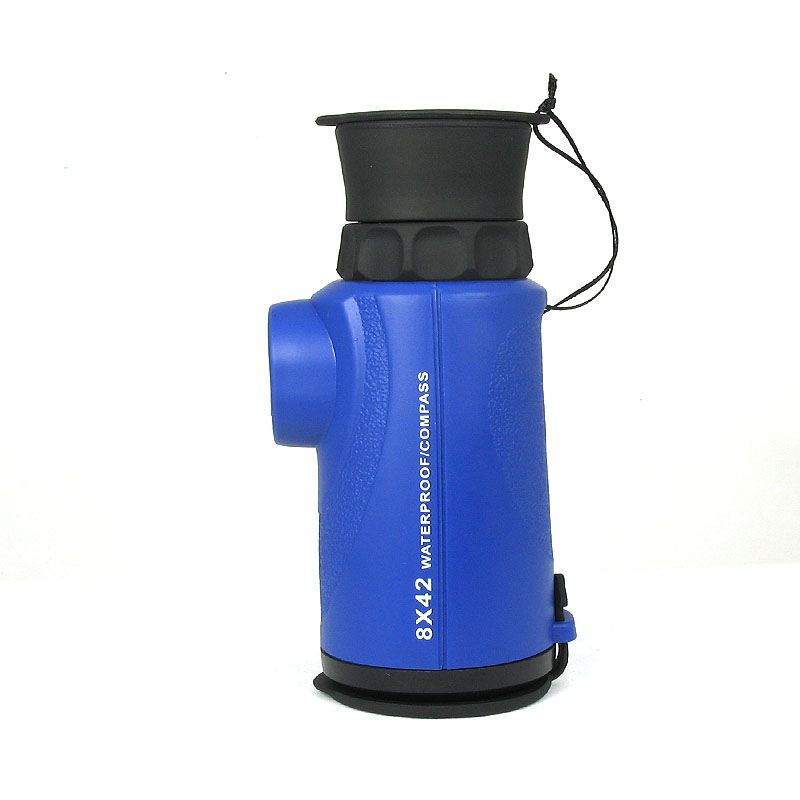

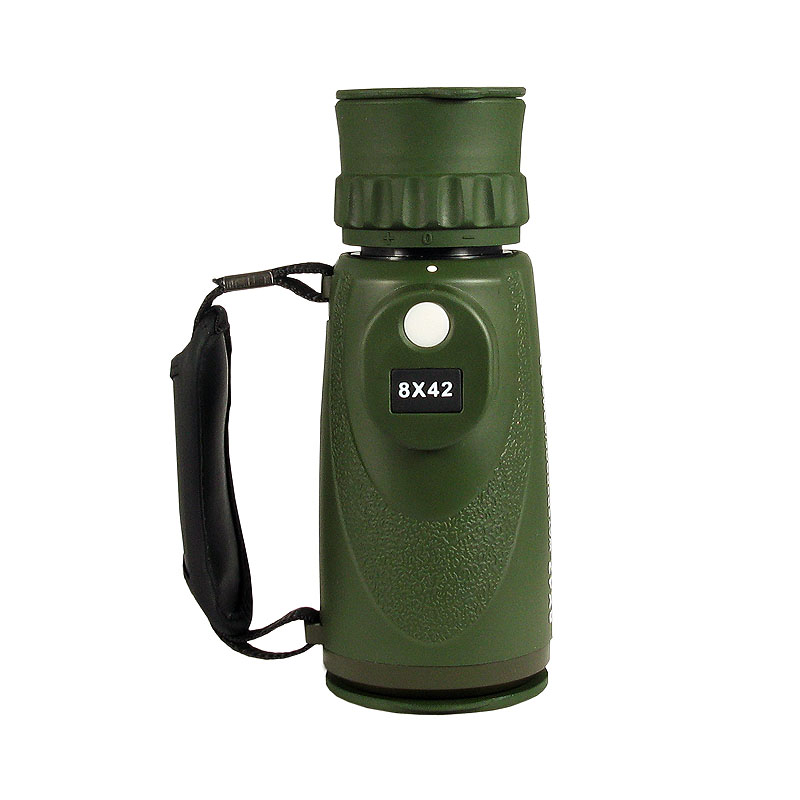

8x42mm Deep Sea Range Finding Reticle Compass Monocular
Key Features :
● BAK-4 Porro Prisms
● Fully Multicoated Optics
● Nitrogen-Filled Water and Fogproof
● Compass Reticle
● Internal Rangefinder
● TRubber Armoring
Overview :
The Deep Sea Series is designed specifically for the nautical and boating enthusiast. 8x magnification (most popular size because of the steady image achievable under rough sea conditions) and exceptional optics, these binoculars provide clear views of marine observation from sunrise to sundown. In addition, this model includes an internal rangefinder and directional compass for navigation. The Deep Sea series includes a wide range of seaworthy styles and sizes to meet the needs of the experienced or beginning mariner. Feature a rugged rubber armor covering that provides a sure and secure grip.
Optical Performance:
● Magnification: 8x
● 42mm objective lenses push low-light performance from the dawn through to dusk

● Roof prism design produces a compact form factor that is easy to hold without sacrificing performance

● Fully coated optics help to improve light transmission and boost contrast and color rendition

● BAK4 prism
● 366' field of view at 1000 yards
Use and Handling :
● Closed-bridge configuration provides a stable platform for the internal focusing mechanism

● Low-profile center focusing wheel helps to maintain a compact form and minimizes snagging hazard

● Right-eye dioptric correction allows users to compensate for optical prescription for sharper views

● Fold-Down rubber eyecups for easy use with or without eyewear

● 19.0mm eye relief

● 5.0 mm exit pupil
Construction Details :
● Compact structure, light and strong, smooth rotation, feel good, fine appearance, precision parts.

● Matte-black rubber armor protects against bumps and impacts

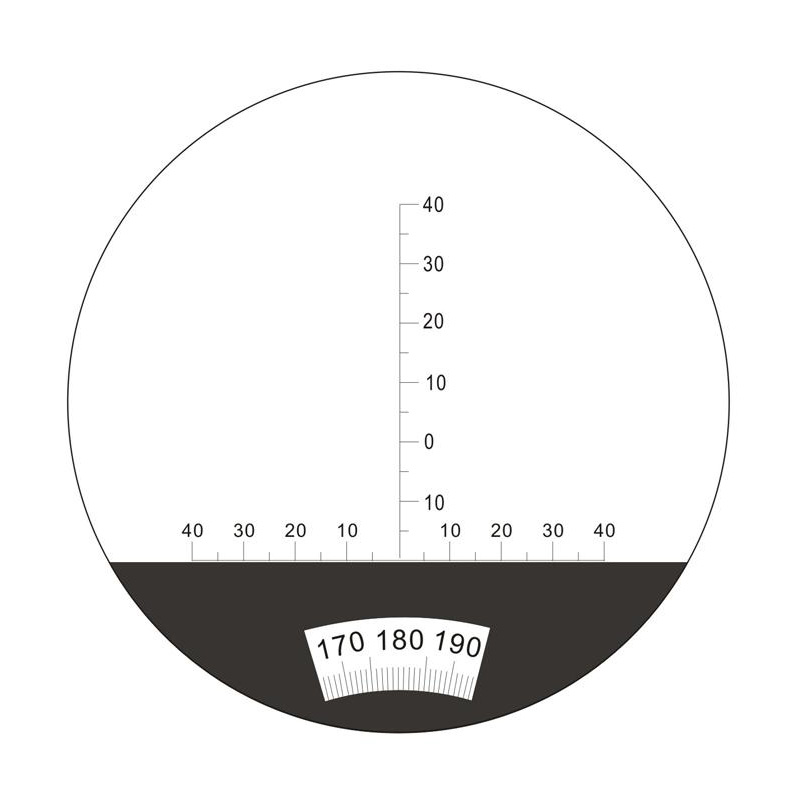

● Integrated rangefinder and directional compass reticle
● Lightweight design, weighs just over 12.69 ounces
● Includes case and hand strap
Performance :

Model BYW4448
Specification 8x42mm
Magnification 8 x
Objective Lens 42 mm
Angle of View 7.0 °
Field of View @ 1000m 122 m /1000m
Field of View @ 1000yds 366 ft /1000 yds
Close Focus Distance 5 m
Exit Pupil 5.0  mm
Eye Relief 19.0 mm
Diopter Adjustment Yes / ±4
Focus system  Individual
Prism Type Roof  (Bak4)
Lens Coating Fully Multi
Eyecups Fold-Down
Waterproof Yes
Weight 360 g
Size 65x65x145 mm
