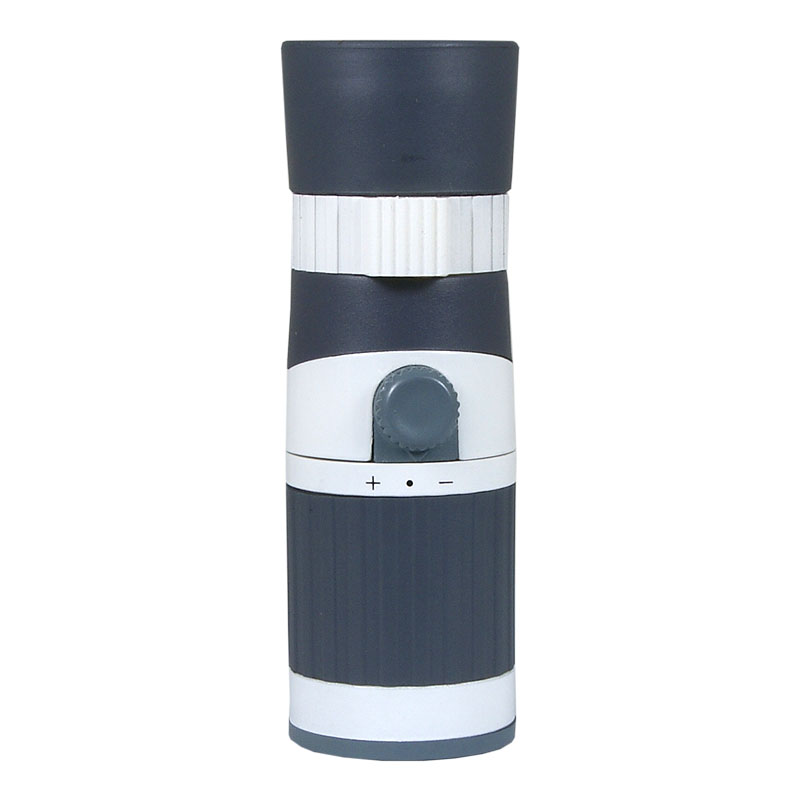

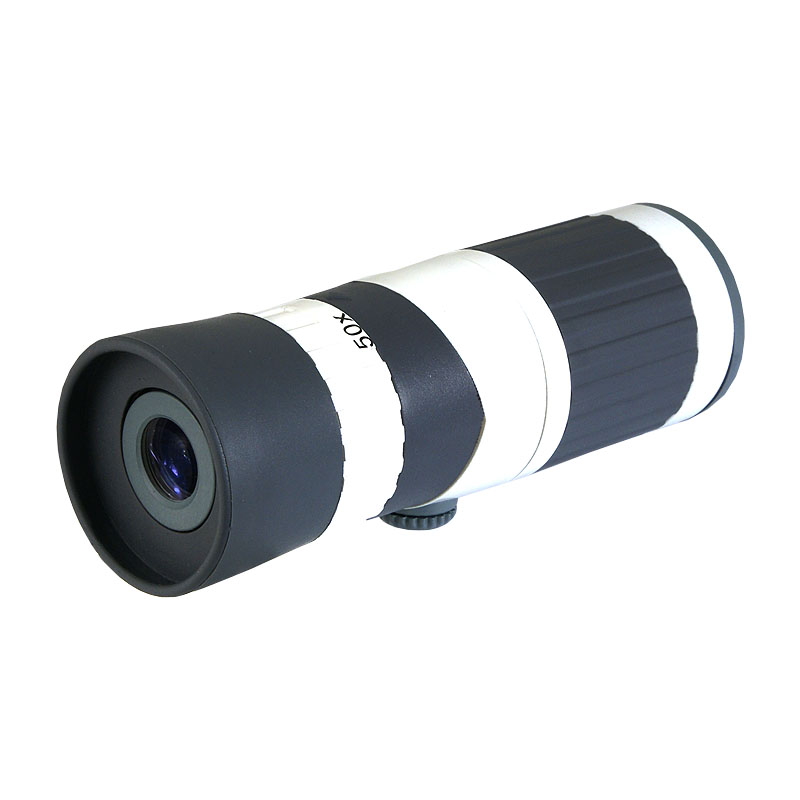

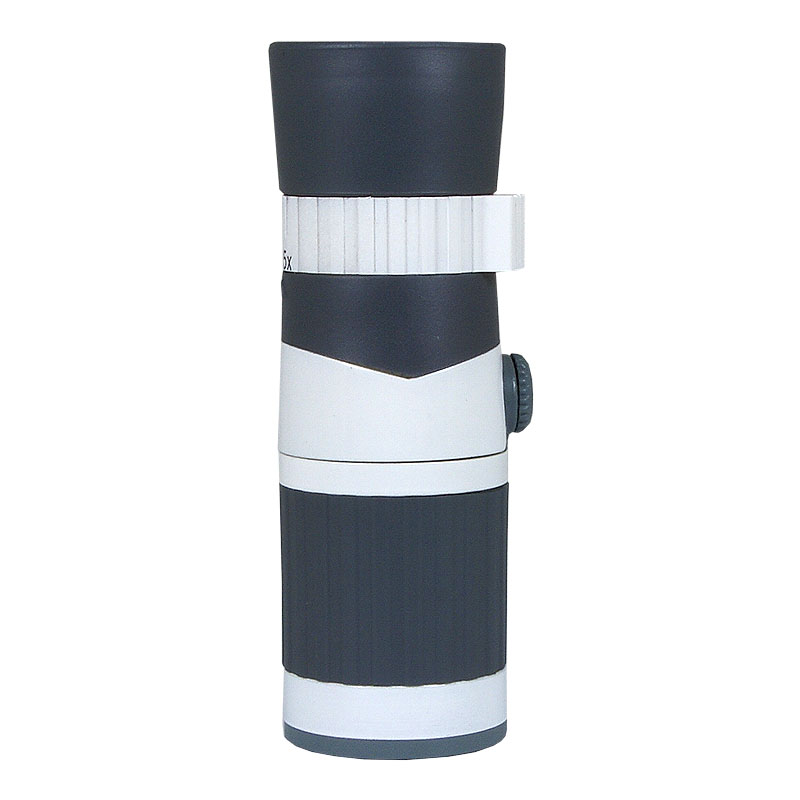

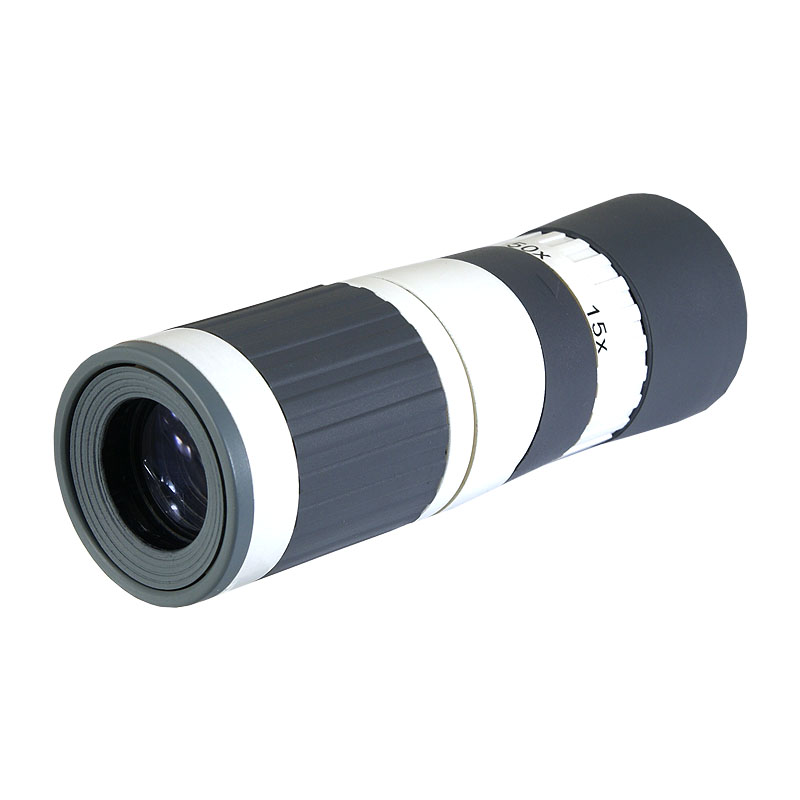

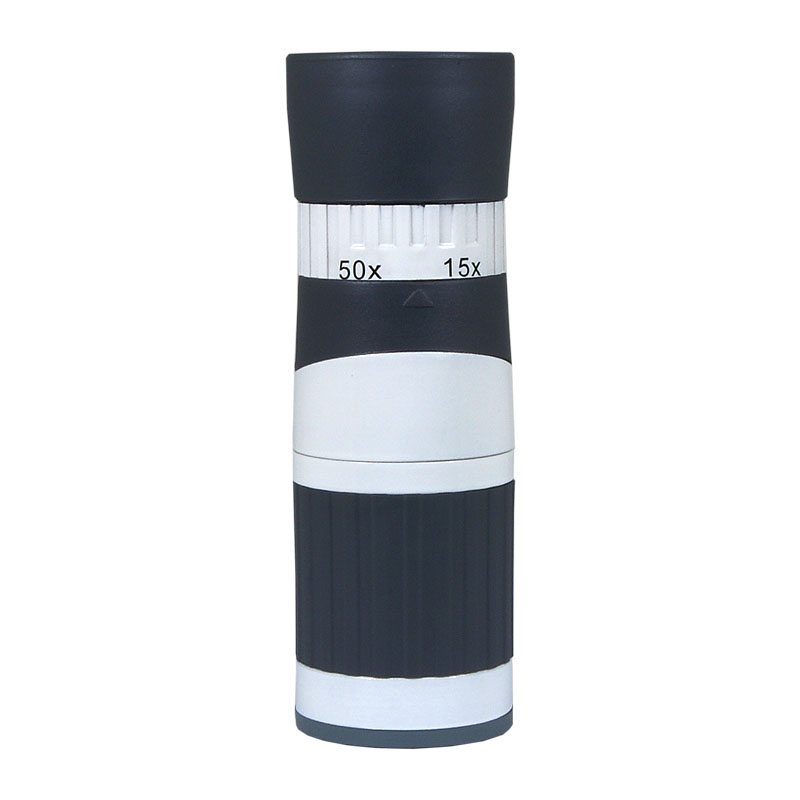

Zoom Monoculars
10-30x21 15-50x21
- Model:BSZ4443
- Magnification: 15x-50x
- Objective Lens: 21 mm
- Angle of View: 2.0 °- 0.9 °
- Product description: The 15-50x21 Zoom Monocular is equipped with optical elements that deliver big performance.
Key Features :
● BK7 Roof Prism Design
● Fully Multi-Coated Optics
● Large Textured Center Focus Knob
● Slip-Resistant Rubber Armoring
● Fold-Down Rubber Eyecup
● Tripod Mountable
Overview :
The 15-50x21 Zoom Monocular is equipped with optical elements that deliver big performance. Its BK7 prism glass and fully multi-coated lenses minimize reflection and maximize light transmission for a bright, sharp image. At 15x, the Zoom yields a respectable field of view;zoom in to 50x to see distant details clearly. You can mount this monocular on a tripod to eliminate image shake at higher magnification, and for comfort during long-duration observations.
Optical Performance:
● 15-50x magnification
● 21mm objective lens
● Roof prism design produces a compact form factor that is easy to hold without sacrificing performance
● Fully coated optics help to improve light transmission and boost contrast and color rendition
● Green lens tint enhances color recognition and helps to reduce glare
● 105-48 ft field of view at 1000 yards
Use and Handling :
● Can be mounted on tripod for shake-free long-term observation
● Close focus distance: 10'
● Prominent zoom ring knob
● Twist-Up rubber eyecups for easy use with or without eyewear
● 11 - 8 mm eye relief
● 1.4-0.4 mm exit pupil
Construction Details :
● Compact design is pocketable and offers easy one-handed use.
● Soft pouch included for convenience
● Diamond-textured palm pads provide additional slip-resistance while adding an elegant and sleek look
● Lightweight design, weighs just over 75g
● Includes case and neck strap
Performance :
Model: | BSZ4443 | BSZ4443 |
Specification | 10-30x21mm | 15-50x21mm |
Magnification | 10 x - 30x | 15 x - 50x |
Objective Lens | 21 mm | 21 mm |
Angle of View | 3.0 °- 1.5 ° | 2.0 °- 0.9 ° |
Field of View @ 1000m | 53m - 26m /1000m | 35m - 16m /1000m |
Field of View @ 1000yds | 159 ft-78ft /1000 yds | 105 ft-48ft /1000 yds |
Exit Pupil | 2.1 - 0.7 mm | 1.4 - 0.4 mm |
Eye Relief | 11.0 - 8 mm | 11.0 - 8 mm |
Diopter Adjustment | Yes / ±4 | Yes / ±4 |
Focus system | Objective Lens | Objective Lens |
Prism Type | Porro (BK-7) | Porro (BK-7) |
Lens Coating | Fully Multi | Fully Multi |
Eyecups | Fold-Down | Fold-Down |
Waterproof | No | No |
Weight | 75 g | 75 g |
Size | 38x35x105 mm | 38x35x105 mm |
