Spotting Scopes
20-60x60 25-75x75 30-90x90
- Model:BSM616
- Magnification: 20x -60x
- Objective Lens: 60 mm
- Angle of View: 2.2°- 0.97°

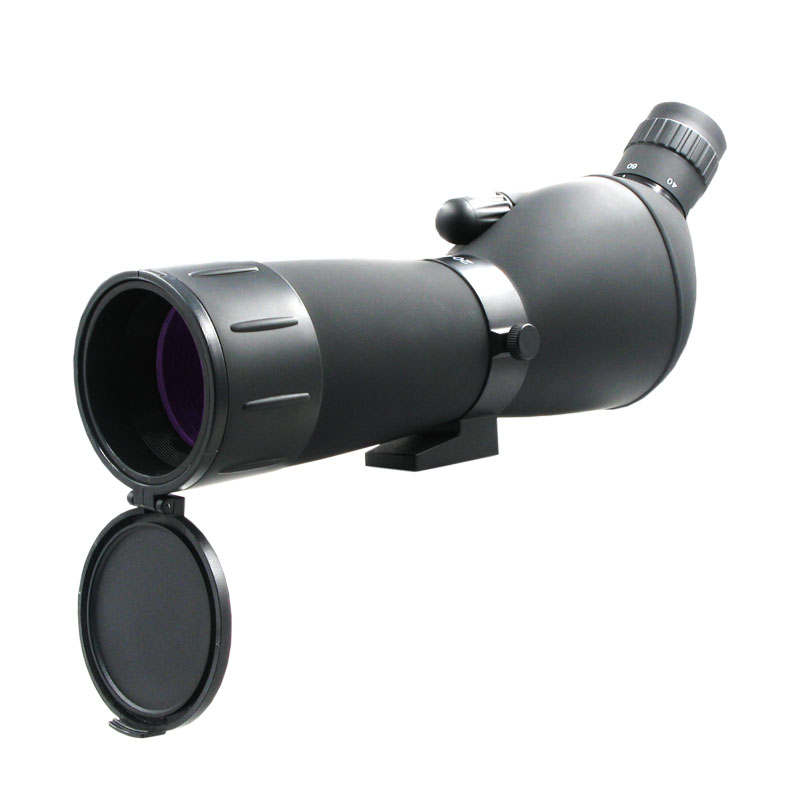

- Product description: The 20-60x60 Spotting Scope from BCI houses multi-coated optics in a rugged weather-resistant housing.
Key Features:
● 20-60x Magnification
● 60mm Objective
● BK7 Porro Prism
● Fully Coated Optics
● Straight Body Design
● Flip-Down Lens Cover
● Grooved Zoom Dial

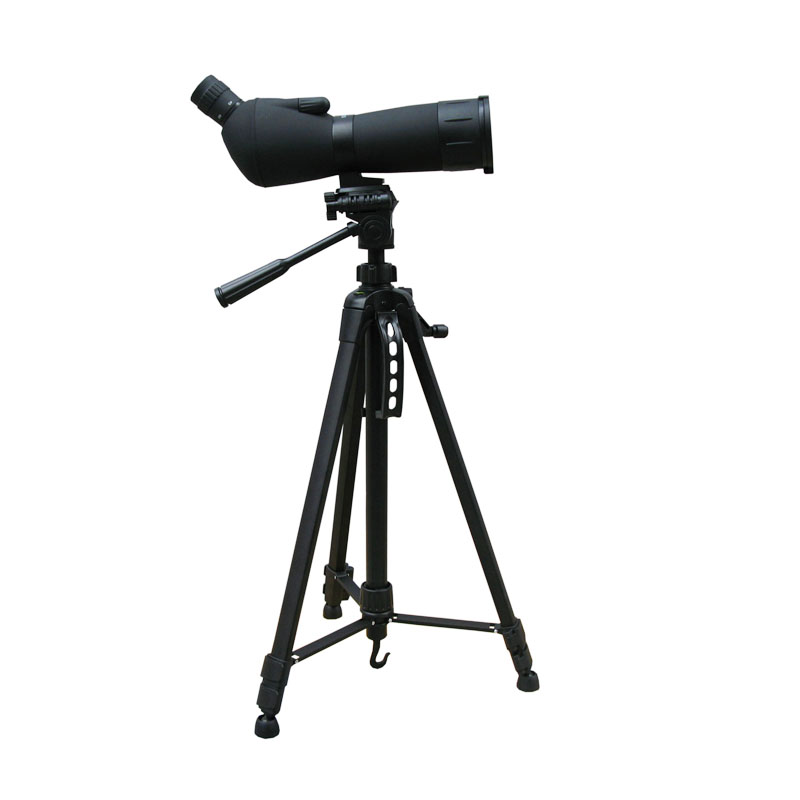

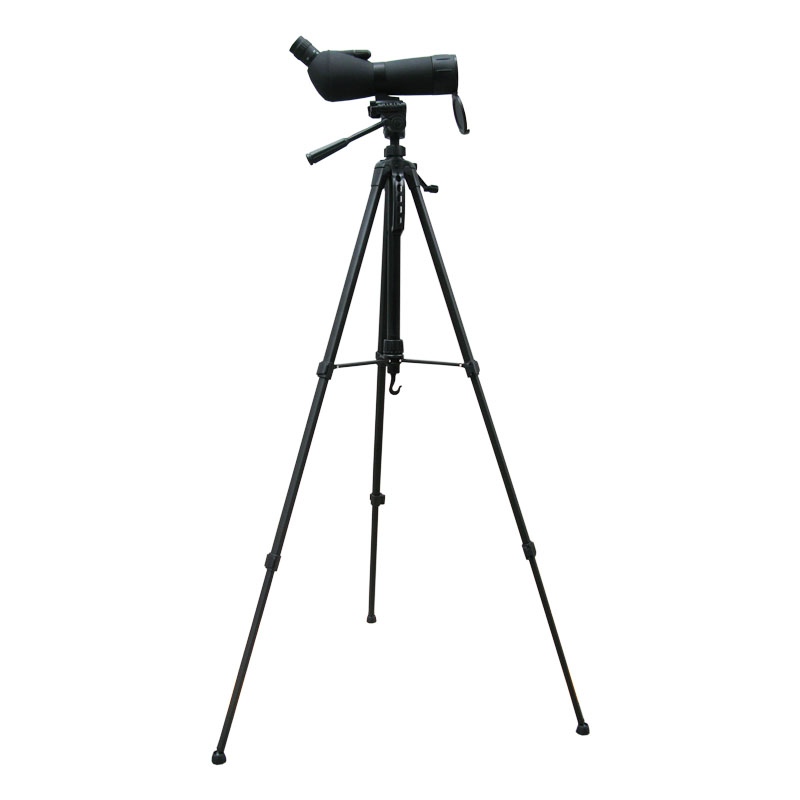

● Included Tripod
Overview :
The 20-60x60 Spotting Scope from BCI houses multi-coated optics in a rugged weather-resistant housing.The wide zoom range makes this optical device ideal for hunting and birdwatching, as well as spotting at the rifle range and even lunar observations.Use the 20x magnification to survey the entire landscape, then zoom to higher magnification and focus on fine details.
spotting scopes use multi-coated lenses and BK7 Porro prisms to transmit bright, contrast-rich images with sharp detail even in low-light conditions.Weather-resistant housing, a straight-body design, and a grooved zoom dial ensure this spotting scope will deliver a comfortable long-term viewing experience for years to come.
Optical Performance:
● 20-60x optical zoom magnification for close-ups or long-range viewing
● 60mm objective lens
● BK7 Porro prism system
● Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness ● 123-63' field of view at 1000 yards
● Long 20-18mm eye relief
● 3.0-1.0mm exit pupil
Use and Handling :
● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Fold-Down rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Rubberized covering provides for a sure grip
● Weight: 760 g
Performance :
Model: | BSM616 | BSM616 | BSM616 |
Specification | 20-60x60mm | 25-75x75mm | 30-90x90mm |
Magnification | 20x -60x | 25x -75 x | 30x -90 x |
Objective Lens Diameter | 60 mm | 75 mm | 90 mm |
Angle of View | 2.2°- 0.97° | 1.7°- 0.8° | 1.8°- 0.62° |
Field of View | 38 -17 m @ 1000 m | 30 -14 m @ 1000 m | 26 -11 m @ 1000 m |
Field of View | 114 - 51 ft @1000 yds | 90 - 42 ft @1000 yds | 78 - 33 ft @1000 yds |
Minimum Focus Distance | 10 m | 10 m | 10 m |
Exit Pupil | 3.0 - 1.0 mm | 3.0 - 1.0 mm | 3.0 - 1.0 mm |
Eye Relief | 18 - 15 mm | 18 - 15 mm | 18 - 15 mm |
Number Of Lens | 8Pcs/6 Groups | 8Pcs/6 Groups | 8Pcs/6 Groups |
Focus Type | Center | Center | Center |
Prism Type | Roof (BK-7) | Roof (BK-7) | Roof (BK-7) |
Lens Coating | Fully Multi | Fully Multi | Fully Multi |
Eyecups | Fold-Down | Fold-Down | Fold-Down |
Waterproof | No | No | No |
Weight | 760 g | 1258 g | 1580 g |
Size | 350x92x138 mm | 430x90x165 mm | 533x105x185 mm |
