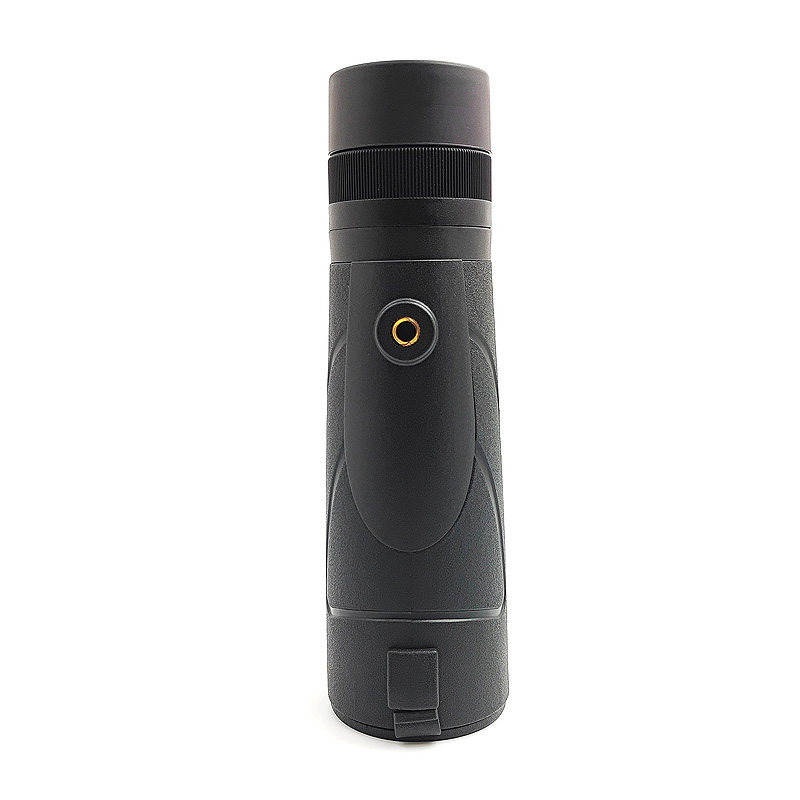

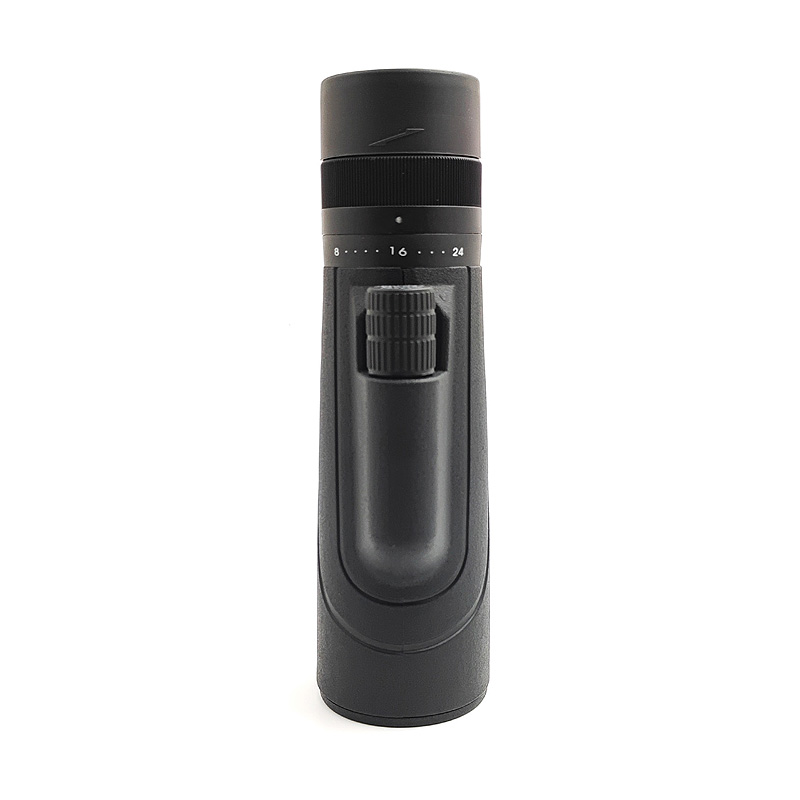

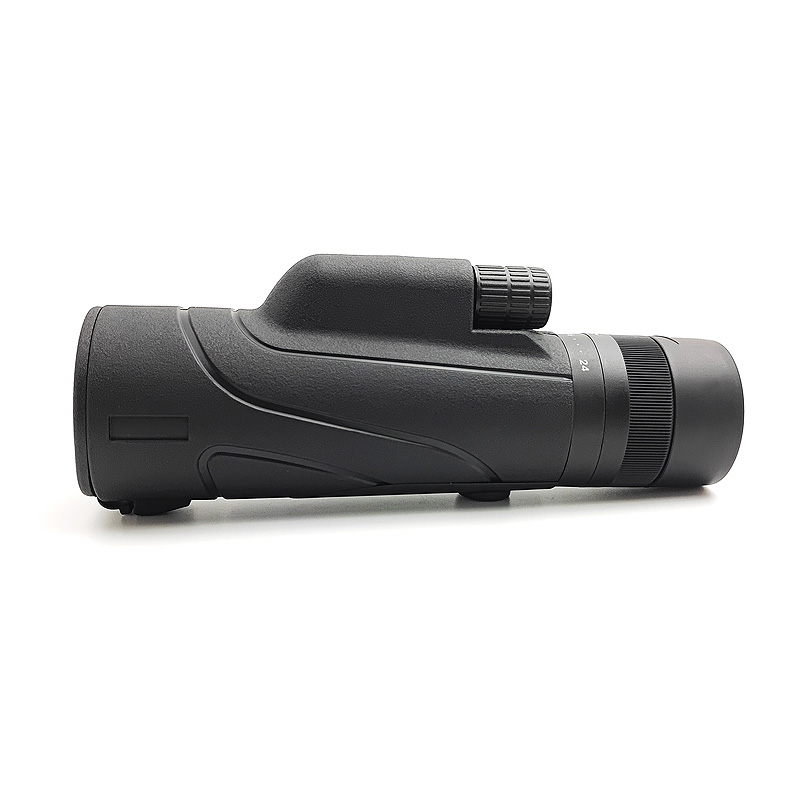

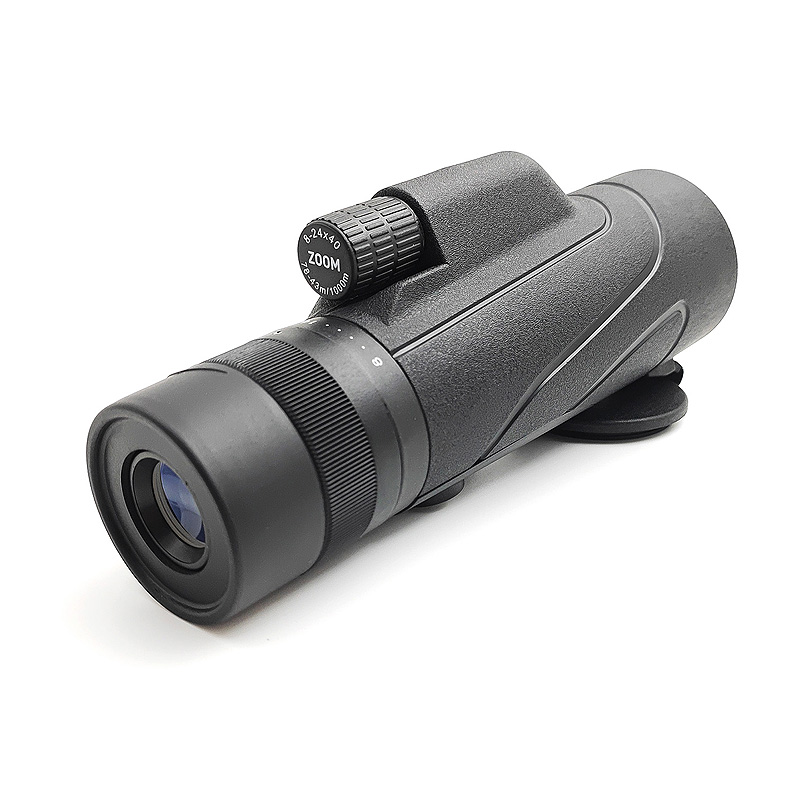

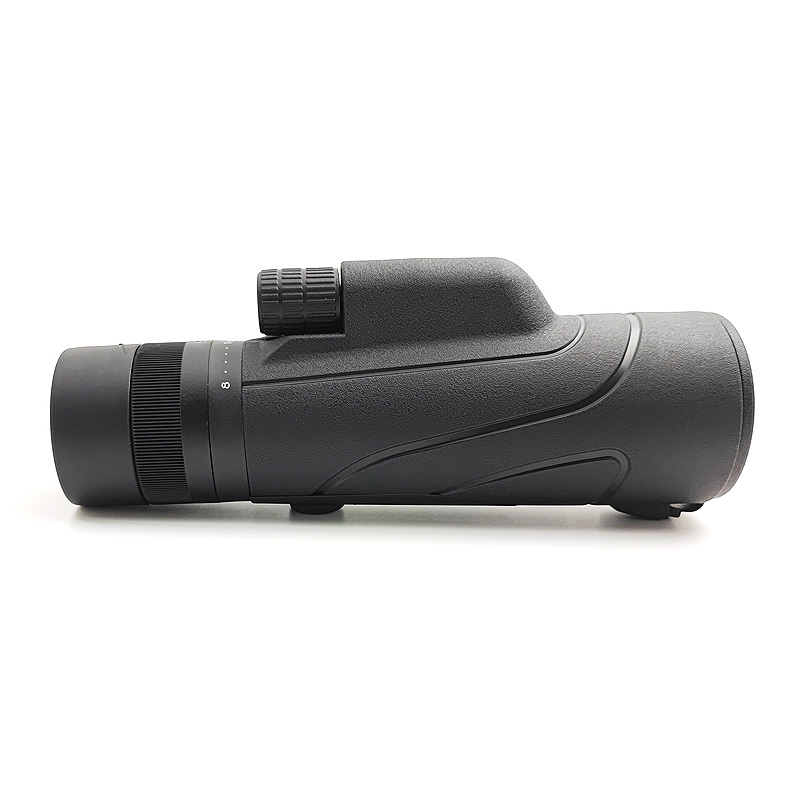

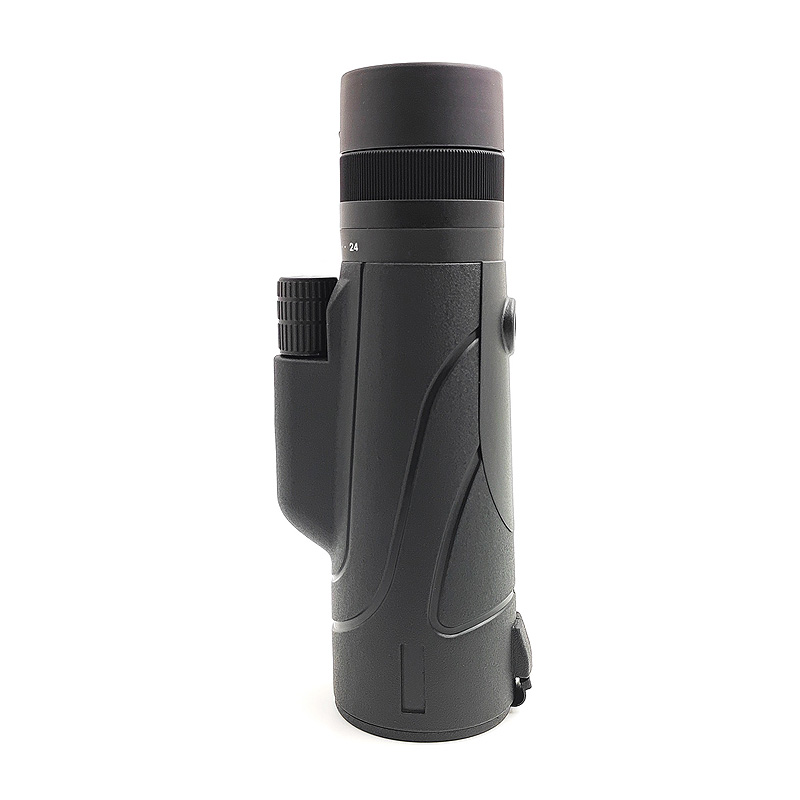

Zoom Monoculars

  • 8-24x40  10x40
  • 8-24x40  10x40
  • 8-24x40  10x40
  • 8-24x40  10x40
  • 8-24x40  10x40
  • 8-24x40  10x40
8-24x40  10x408-24x40  10x408-24x40  10x408-24x40  10x408-24x40  10x408-24x40  10x40

8-24x40 10x40

  • Model:BMZ4473
  • Magnification: 8x-24x
  • Objective Lens: 40 mm
  • Angle of View: 4.5° - 2.5°
  • Product description: The8-24x40 Zoom Monocular is equipped with optical elements that deliver big performance.
  • INQUIRY

Key Features:
● BK7 Roof Prism Design
● Fully Multi-Coated Optics
● Slip-Resistant Rubber Armoring
● Tripod Mountable via 1/4"-20 Mount
● Twist-Up Click-Stop Eyecup
Overview :
The8-24x40 Zoom Monocular is equipped with optical elements that deliver big performance.  Its BK7 prism glass and fully multi-coated lenses minimize reflection and maximize light transmission for a bright, sharp image.  At 8x, the  Zoom yields a respectable field of view; zoom in to 24x to see distant details clearly. You can mount this monocular on a tripod to eliminate image shake at higher magnification, and for comfort during long-duration observations. Along with its long-distance capabilities, the8-24x40 Zoom Monocular features a  26.24 Ft close-focus distance with applications in nature observation, art galleries, and museums
Optical Performance:
● 8-24x magnification
● 40mm objective lens
● Roof prism design produces a compact form factor that is easy to hold without sacrificing performance ● Fully coated optics help to improve light transmission and boost contrast and color rendition
● Green lens tint enhances color recognition and helps to reduce glare
● 234- 129 ft field of view at 1000 yards
Use and Handling:
● Can be mounted on tripod for shake-free long-term observation
● Close focus distance: 6M
● Prominent zoom ring knob
● Twist-Up rubber eyecups for easy use with or without eyewear
● 20-13mm eye relief
● 5.0-1.6mm exit pupil
Construction Details:
● Compact design is pocketable and offers easy one-handed use.
● Soft pouch included for convenience
● Diamond-textured palm pads provide additional slip-resistance while adding an elegant and sleek look
● Lightweight design, weighs just over 288g
● Includes case and neck strap
Performance :

Model BM4473 BMZ4473
Specification 10x40mm 8-24x40mm
Magnification 10x  8x - 24x
Objective Lens 40 mm 40 mm
Angle of View 5.3°  4.5° - 2.5°
Field of View @ 1000m 93 m /1000m 78 m - 43 m
Field of View @ 1000yds 279 ft /1000 yds 234ft  - 129ft
Close Focus Distance 6 m 6 m
Exit Pupil 4.0  mm 5.0 -1.6 mm
Eye Relief 18.0 mm 20mm -13 mm
Diopter Adjustment Yes / ±4 Yes / ±4
Focus system Center Center
Prism Type Roof  (Bk7) Roof  (Bk7)
Lens Coating Fully Multi Fully Multi
Eyecups Twist-Up Twist-Up
Waterproof No No
Weight 268 g 288 g
Size 73x55x160 mm 73x55x182 mm
