Zoom Monoculars
10-30x50 12x50
- Model:BMZ4482
- Magnification: 10x-30x
- Objective Lens: 50 mm
- Angle of View: 4.1° - 3.0°
- Product description: The10-30x50 Zoom Monocular is equipped with optical elements that deliver big performance.
Key Features:
● BK7 Roof Prism Design
● Fully Multi-Coated Optics
● Slip-Resistant Rubber Armoring
● Tripod Mountable via 1/4"-20 Mount
● Twist-Up Click-Stop Eyecup
Overview :
The10-30x50 Zoom Monocular is equipped with optical elements that deliver big performance. Its BK7 prism glass and fully multi-coated lenses minimize reflection and maximize light transmission for a bright, sharp image. At 10x, the Zoom yields a respectable field of view; zoom in to 30x to see distant details clearly. You can mount this monocular on a tripod to eliminate image shake at higher magnification, and for comfort during long-duration observations. Along with its long-distance capabilities, the10-30x50 Zoom Monocular features a 7m close-focus distance with applications in nature observation, art galleries, and museums
Optical Performance:
● 10-30x magnification
● 50mm objective lens
● Roof prism design produces a compact form factor that is easy to hold without sacrificing performance ● Fully coated optics help to improve light transmission and boost contrast and color rendition
● Green lens tint enhances color recognition and helps to reduce glare
● 216- 162 ft field of view at 1000 yards
Use and Handling:

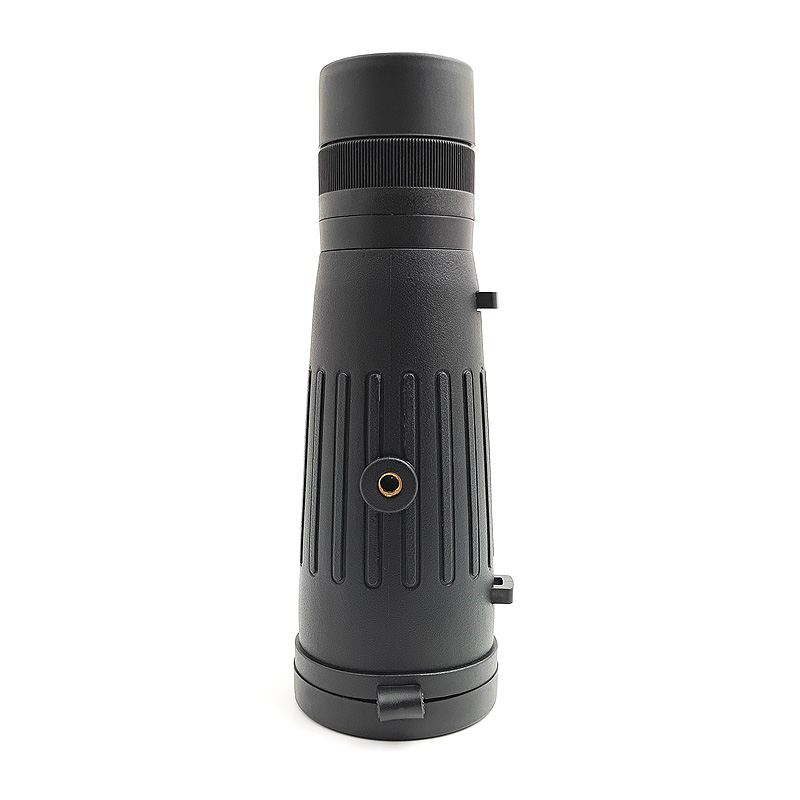

● Can be mounted on tripod for shake-free long-term observation
● Close focus distance: 6M
● Prominent zoom ring knob
● Twist-Up rubber eyecups for easy use with or without eyewear
● 20-13mm eye relief
● 5.0-1.6mm exit pupil
Construction Details:
● Compact design is pocketable and offers easy one-handed use.
● Soft pouch included for convenience
● Diamond-textured palm pads provide additional slip-resistance while adding an elegant and sleek look
● Lightweight design, weighs just over 340g
● Includes case and neck strap
Performance :
Model: | BM4482 | BMZ4482 |
Specification | 12x50mm | 10-30x50mm |
Magnification | 12x | 10x - 30x |
Objective Lens | 50 mm | 50 mm |
Angle of View | 5.2° | 4.1° - 3.0° |
Field of View @ 1000m | 91 m /1000m | 72 m - 54 m |
Field of View @ 1000yds | 273 ft /1000 yds | 216 ft - 162 ft |
Close Focus Distance | 6 m | 7 m |
Exit Pupil | 4.1 mm | 5.0 - 1.6 mm |
Eye Relief | 17.0 mm | 20mm -13 mm |
Diopter Adjustment | Yes / ±4 | Yes / ±4 |
Focus system | Center | Center |
Prism Type | Roof (Bk7) | Roof (Bk7) |
Lens Coating | Fully Multi | Fully Multi |
Eyecups | Twist-Up | Twist-Up |
Waterproof | No | No |
Weight | 315 g | 337 g |
Size | 78x68x165 mm | 78x68x187 mm |
