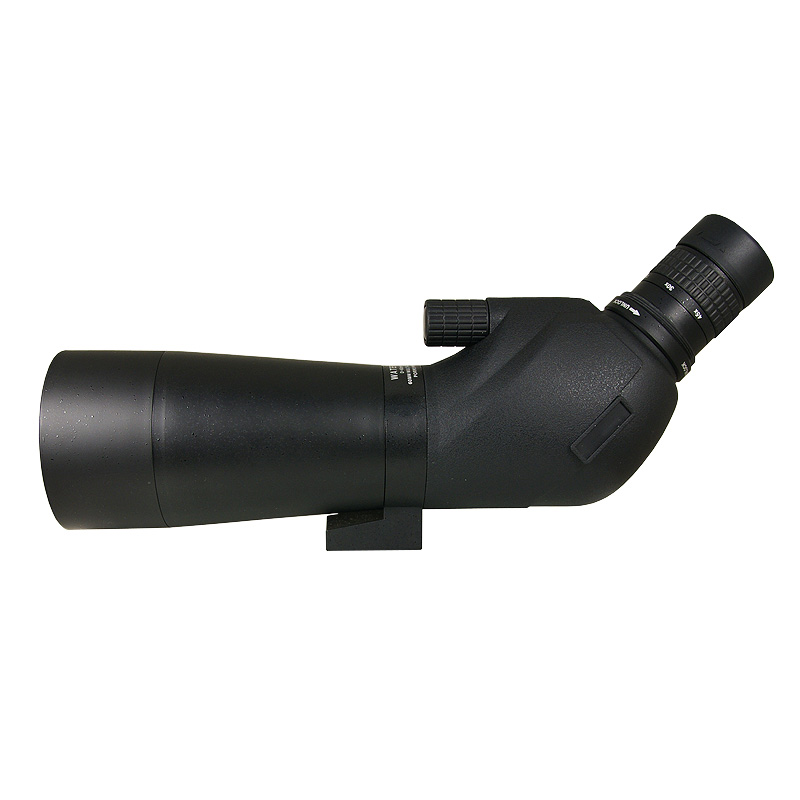

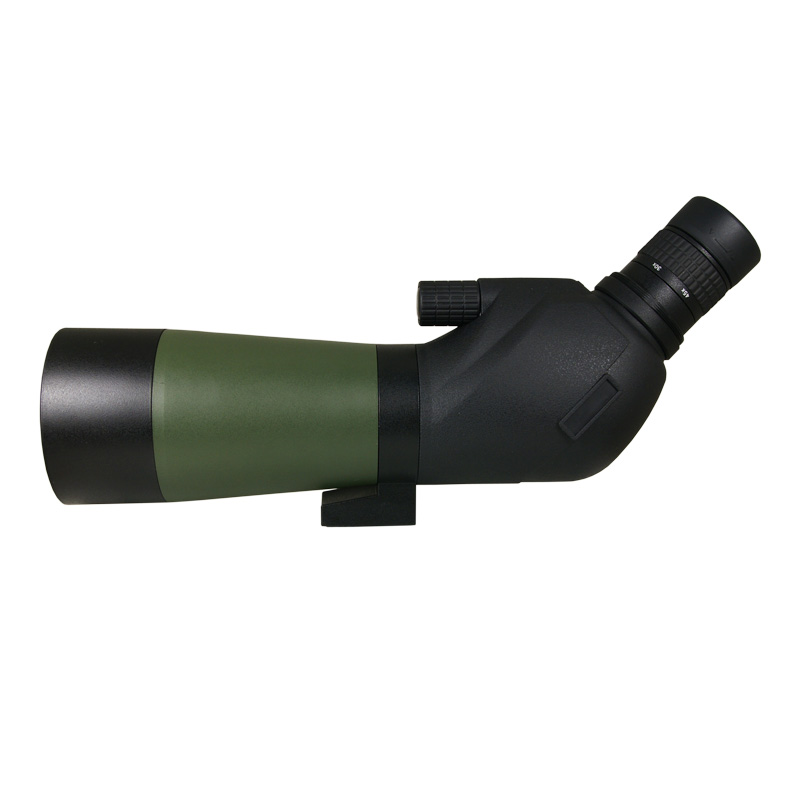

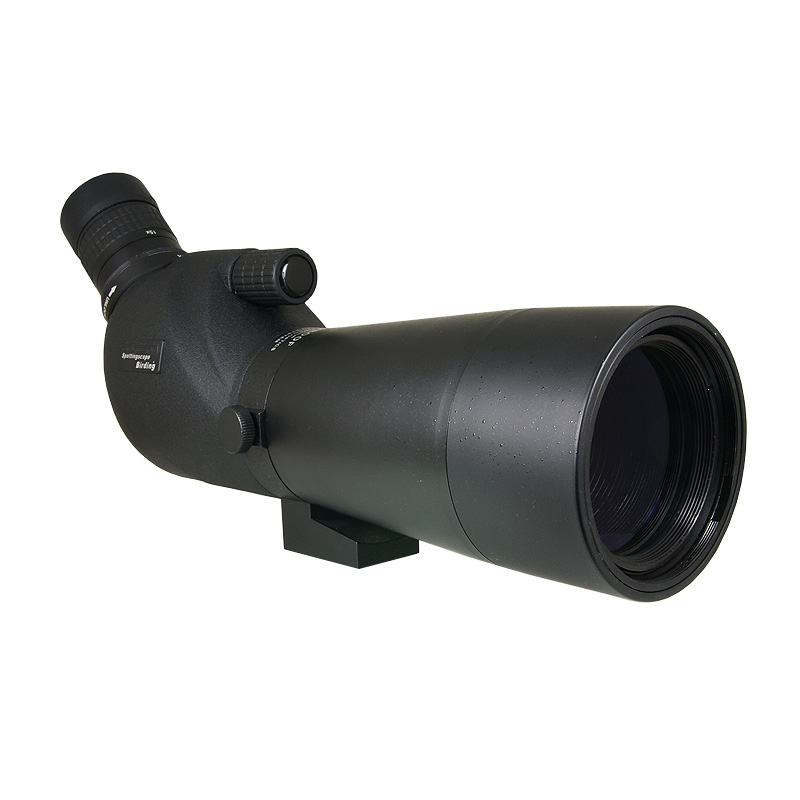

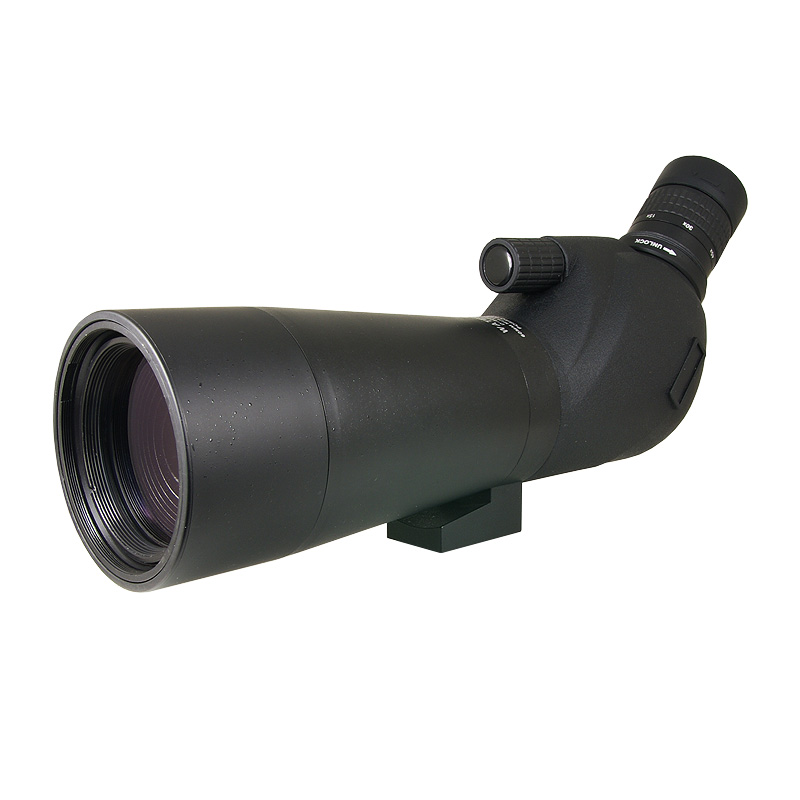

Spotting Scopes
15-45x50 20-60x60 20-60x80
- Model:BSH637
- Magnification: 20x -60x
- Objective Lens: 60 mm
- Angle of View: 2.3° - 1.1°
- Product description: Its eyepiece is set a 45° angle to the optical tube, which places your head in a comfortable viewing position whether standing, sitting, or lying prone.
Key Features:
● 20-60x Zoom Magnification
● 60mm Objective
● BK7 Porro Prism
● Fully Multi-Coated Optics
● Nitrogen Filled, Water and Fogproof
● 45° Angled Viewing
● Single-Speed Focusing Knob
● Tabletop Tripod with Pan/Tilt Head
Overview :
The 20-60x60 Spotting Scope is an ideal companion for birders, hunters, and nature enthusiasts who require a versatile, powerful, and portable optic on the trail or at the range. Outfitted with a wide zoom range that provides expansive views at low power with the ability to make detailed observations of distant subjects at its highest magnification, this spotter has anti-reflection fully multi-coated optics to improve light transmission, color rendition, and contrast to produce an immersive observational experience.
Its eyepiece is set a 45° angle to the optical tube, which places your head in a comfortable viewing position whether standing, sitting, or lying prone. A textured zoom collar and focus knob ensure easy handling in cold and wet weather or while wearing gloves. Included with the spotter is a soft stay-on/view-through case for optimum mobility and additional protection from drops or impacts and a tabletop tripod with pan/tilt head to give you a complete support system right out of the box.
Optical Performance:
● 20-60x zoom magnification
● 60mm objective lens
● BK7 Porro prism system
● 3.3-1.1mm exit pupil
Use and Handling :
● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Twist-up rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Rubberized covering provides for a sure grip
● Weight: 873 g
Performance :
● 20-60x Zoom Magnification
● 60mm Objective
● BK7 Porro Prism
● Fully Multi-Coated Optics
● Nitrogen Filled, Water and Fogproof
● 45° Angled Viewing
● Single-Speed Focusing Knob
● Tabletop Tripod with Pan/Tilt Head
Overview :
The 20-60x60 Spotting Scope is an ideal companion for birders, hunters, and nature enthusiasts who require a versatile, powerful, and portable optic on the trail or at the range. Outfitted with a wide zoom range that provides expansive views at low power with the ability to make detailed observations of distant subjects at its highest magnification, this spotter has anti-reflection fully multi-coated optics to improve light transmission, color rendition, and contrast to produce an immersive observational experience.
Its eyepiece is set a 45° angle to the optical tube, which places your head in a comfortable viewing position whether standing, sitting, or lying prone. A textured zoom collar and focus knob ensure easy handling in cold and wet weather or while wearing gloves. Included with the spotter is a soft stay-on/view-through case for optimum mobility and additional protection from drops or impacts and a tabletop tripod with pan/tilt head to give you a complete support system right out of the box.
Optical Performance:
● 20-60x zoom magnification
● 60mm objective lens
● BK7 Porro prism system
● Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness
● 120-58ft field of view at 1000 yards
● 17-14 mm eye relief● 3.3-1.1mm exit pupil
Use and Handling :
● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Twist-up rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Rubberized covering provides for a sure grip
● Weight: 873 g
Performance :
Model: | BSH637 | BSH637 | BSH637 |
Specification | 15-45x50mm | 20-60x60mm | 20-60x80mm |
Magnification | 15x -45x | 20x -60x | 20x -60 x |
Objective Lens Diameter | 50 mm | 60 mm | 80 mm |
Angle of View | 2.6 ° - 1.2 ° | 2.3° - 1.1° | 1.8°-1.0° |
Field of View | 45 -22 m @ 1000 m | 40 -19 m @ 1000 m | 32 -17.5 m @ 1000 m |
Field of View | 135 - 66 ft @1000 yds | 120 - 58 ft @1000 yds | 96 - 53 ft @1000 yds |
Minimum Focus Distance | 10 m | 10 m | 10 m |
Exit Pupil | 3.3 - 1.1 mm | 3.0 - 1.0 mm | 4.0 - 1.3 mm |
Eye Relief | 17 - 14 mm | 17 - 14 mm | 18 - 15 mm |
Number Of Lens | 8Pcs/5 Groups | 8Pcs/5 Groups | 8Pcs/5 Groups |
Focus Type | Center | Center | Center |
Prism Type | Roof (BK-7) | Roof (BK-7) | Roof (BK-7) |
Lens Coating | Fully Multi | Fully Multi | Fully Multi |
Eyecups | Twist-up | Twist-up | Twist-up |
Waterproof | Yes / IPX-6 | Yes / IPX-6 | Yes / IPX-6 |
Weight | 740 g | 873 g | 1230 g |
Size | 280x90x165 mm | 340x90x165 mm | 430x90x165 mm |
