Spotting Scopes
20-60x60 20-60x80 25-75x80
- Model:BSH644
- Magnification: 20x -60x
- Objective Lens: 80 mm
- Angle of View: 1.9°-0.95°
- Product description: The 20-60x80 Spotting Scope Kit from is a lightweight cost-effective spotting scope useful for terrain navigation, bird-watching, and spotting at the range.
Key Features:
● 20-60x Magnification
● BK7 Porro Prism System
● Fully Multi-Coated Optics
● 80mm objective lens
● 16.4ft Minimum Focus Distance
● Lightweight Compact Design
● Nitrogen Filled, Waterproof & Fogproof
● Rubber Armoring
● 1/4"-20 Rotating Tripod Collar
Overview :
The 20-60x80 Spotting Scope Kit from is a lightweight cost-effective spotting scope useful for terrain navigation, bird-watching, and spotting at the range. The 20-60x magnification is suited for intermediate- to long-range outdoor applications. A wide 60mm objective, fully multi-coated optics, and BK7 Porro prisms transmit bright detail-rich images throughout the entire zoom range. The built-in sunshade further enhances contrast by shielding stray light from entering the field of view and degrading image quality.

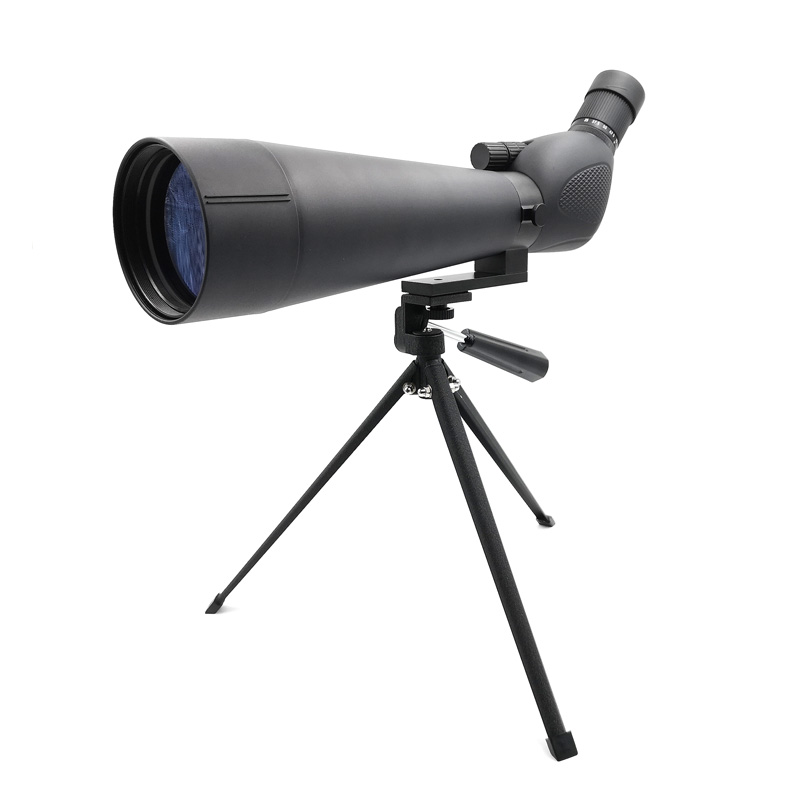

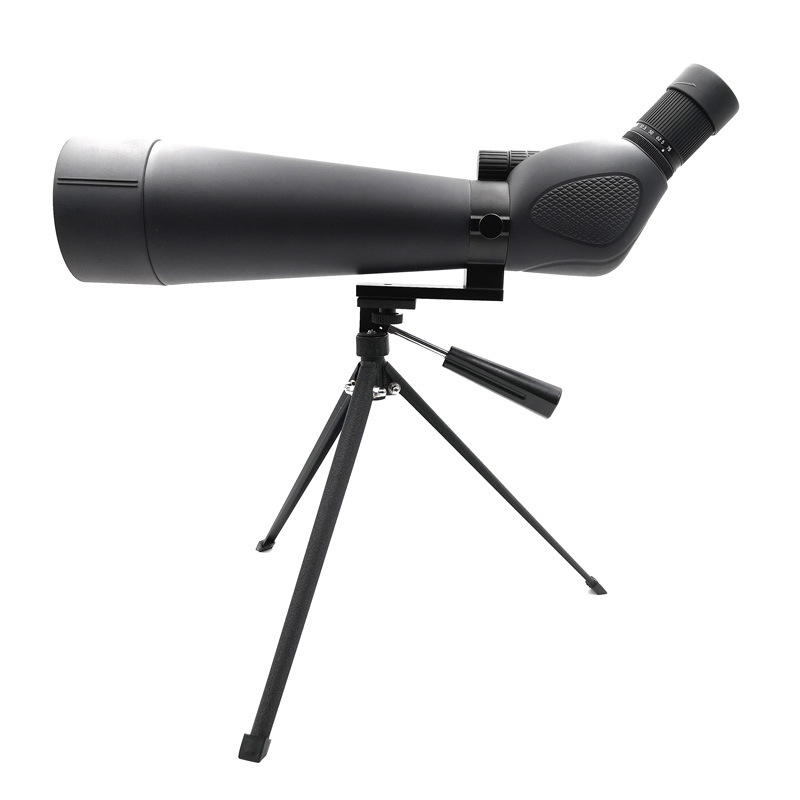

Its eyepiece is set a 45° angle to the optical tube, which places your head in a comfortable viewing position whether standing, sitting, or lying prone. A textured zoom collar and focus knob ensure easy handling in cold and wet weather or while wearing gloves. Included with the spotter is a soft stay-on/view-through case for optimum mobility and additional protection from drops or impacts and a tabletop tripod with pan/tilt head to give you a complete support system right out of the box.
Optical Performance:
● 20-60x optical zoom magnification for close-ups or long-range viewing
● 80mm objective lens
● BK7 Porro prism system
● Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness
● 99-50ft field of view at 1000 yards
● 13.5-11 mm eye relief
● 4.0-1.3mm exit pupil
Use and Handling :

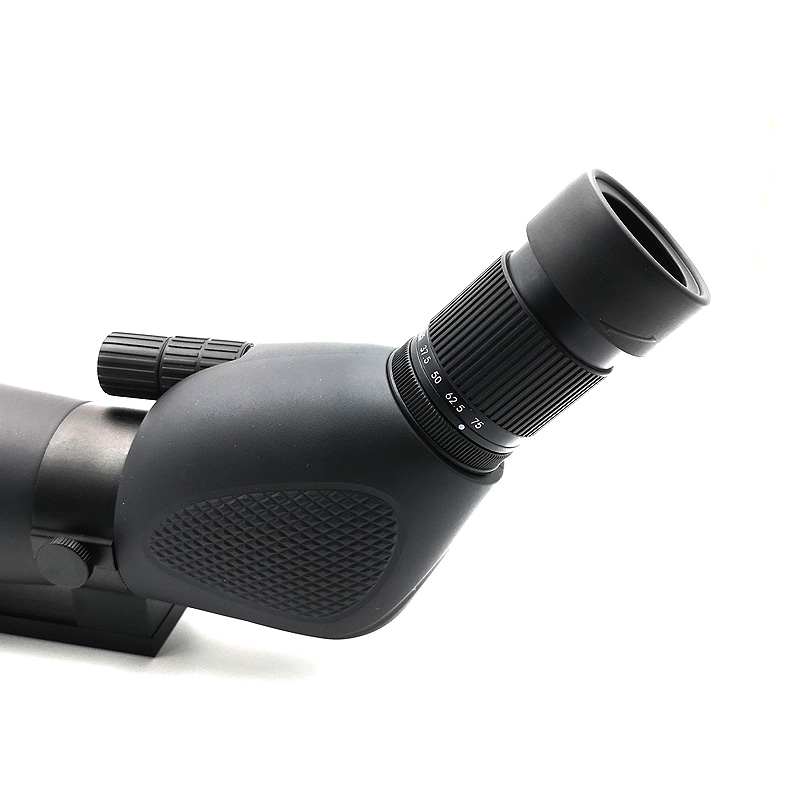

● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Twist-up rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Rubberized covering provides for a sure grip
● Weight: 1150 g
Performance :
● 20-60x Magnification
● BK7 Porro Prism System
● Fully Multi-Coated Optics
● 80mm objective lens
● 16.4ft Minimum Focus Distance
● Lightweight Compact Design
● Nitrogen Filled, Waterproof & Fogproof
● Rubber Armoring
● 1/4"-20 Rotating Tripod Collar
Overview :
The 20-60x80 Spotting Scope Kit from is a lightweight cost-effective spotting scope useful for terrain navigation, bird-watching, and spotting at the range. The 20-60x magnification is suited for intermediate- to long-range outdoor applications. A wide 60mm objective, fully multi-coated optics, and BK7 Porro prisms transmit bright detail-rich images throughout the entire zoom range. The built-in sunshade further enhances contrast by shielding stray light from entering the field of view and degrading image quality.
Its eyepiece is set a 45° angle to the optical tube, which places your head in a comfortable viewing position whether standing, sitting, or lying prone. A textured zoom collar and focus knob ensure easy handling in cold and wet weather or while wearing gloves. Included with the spotter is a soft stay-on/view-through case for optimum mobility and additional protection from drops or impacts and a tabletop tripod with pan/tilt head to give you a complete support system right out of the box.
Optical Performance:
● 20-60x optical zoom magnification for close-ups or long-range viewing
● 80mm objective lens
● BK7 Porro prism system
● Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness
● 99-50ft field of view at 1000 yards
● 13.5-11 mm eye relief
● 4.0-1.3mm exit pupil
Use and Handling :
● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Twist-up rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Rubberized covering provides for a sure grip
● Weight: 1150 g
Performance :
Model: | BSHW644 | BSHW644 | BSHW644 |
Specification | 20-60x60mm | 20-60x80mm | 25-75x80mm |
Magnification | 20x -60x | 20x -60 x | 25x -75 x |
Objective Lens Diameter | 60 mm | 80 mm | 80 mm |
Angle of View | 1.8°-0.9° | 1.9°-0.95° | 1.4°- 0.7° |
Field of View | 31 -16 m @ 1000 m | 33 -16.5 m @ 1000 m | 25 -12 m @ 1000 m |
Field of View | 93 - 48 ft @1000 yds | 99 - 50 ft @1000 yds | 75 - 36 ft @1000 yds |
Minimum Focus Distance | 8 m | 10 m | 10 m |
Exit Pupil | 3.0 - 1.0 mm | 4.0 - 1.3 mm | 3.0 - 1.0 mm |
Eye Relief | 13.5 - 11 mm | 13.5 - 11 mm | 13.5 - 11 mm |
Number Of Lens | 8Pcs/5 Groups | 8Pcs/5 Groups | 8Pcs/6 Groups |
Focus Type | Center | Center | Center |
Prism Type | Roof (BK-7) | Roof (BK-7) | Roof (BK-7) |
Lens Coating | Fully Multi | Fully Multi | Fully Multi |
Eyecups | Twist-up | Twist-up | Twist-up |
Waterproof | Yes / IPX-7 | Yes / IPX-7 | Yes / IPX-7 |
Weight | 770 g | 1150 g | 1150 g |
Size | 335x150x80 mm | 438x150x95 mm | 438x150x95 mm |
