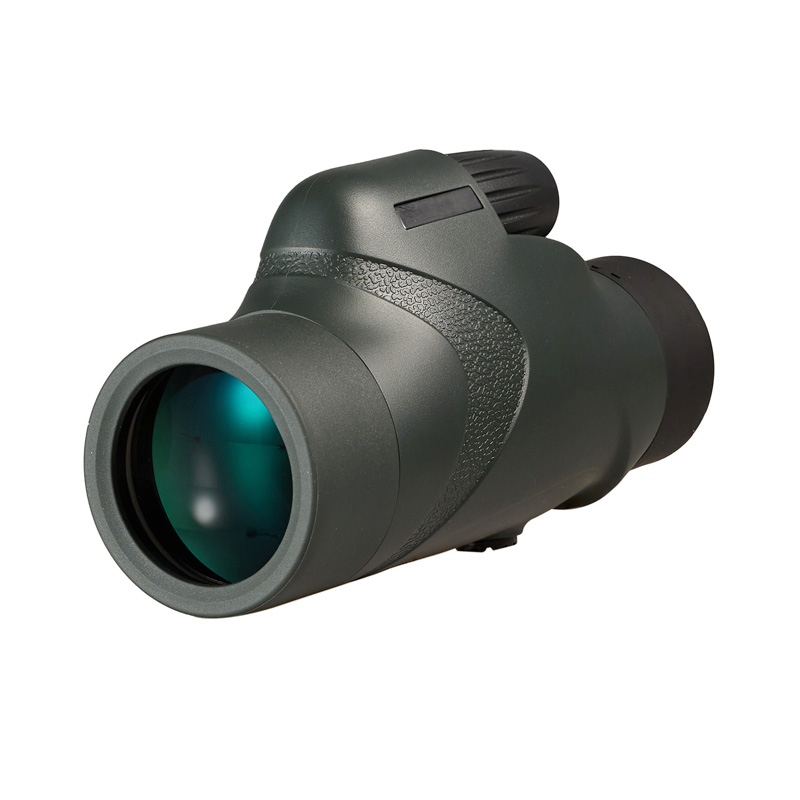

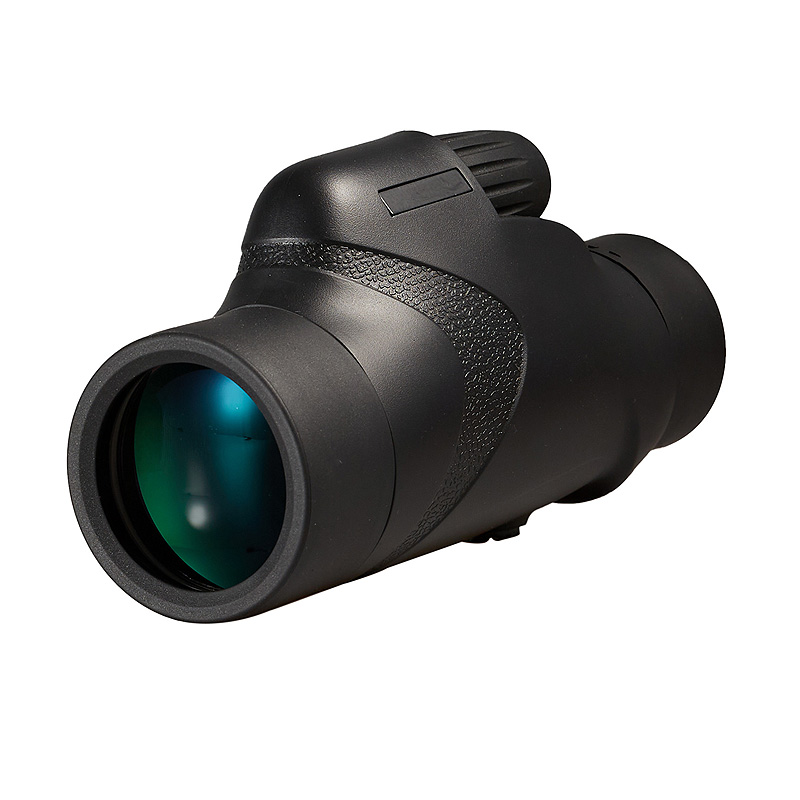

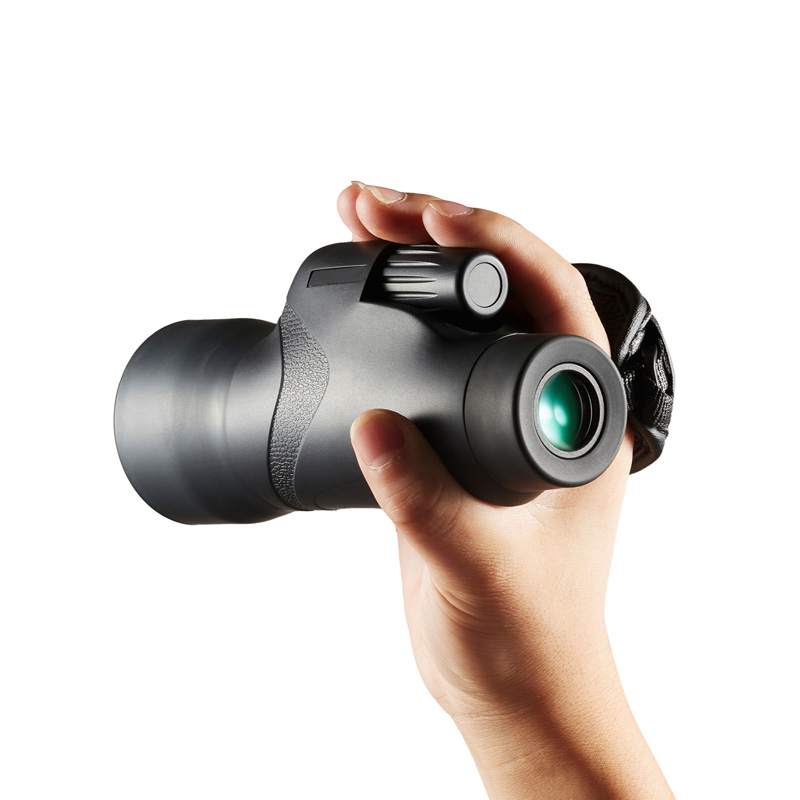

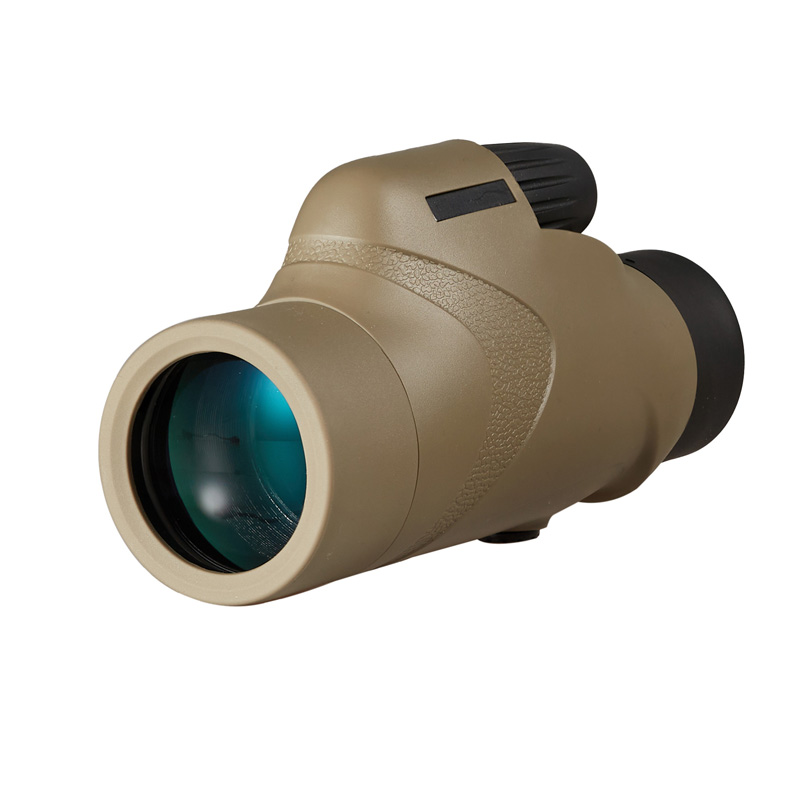

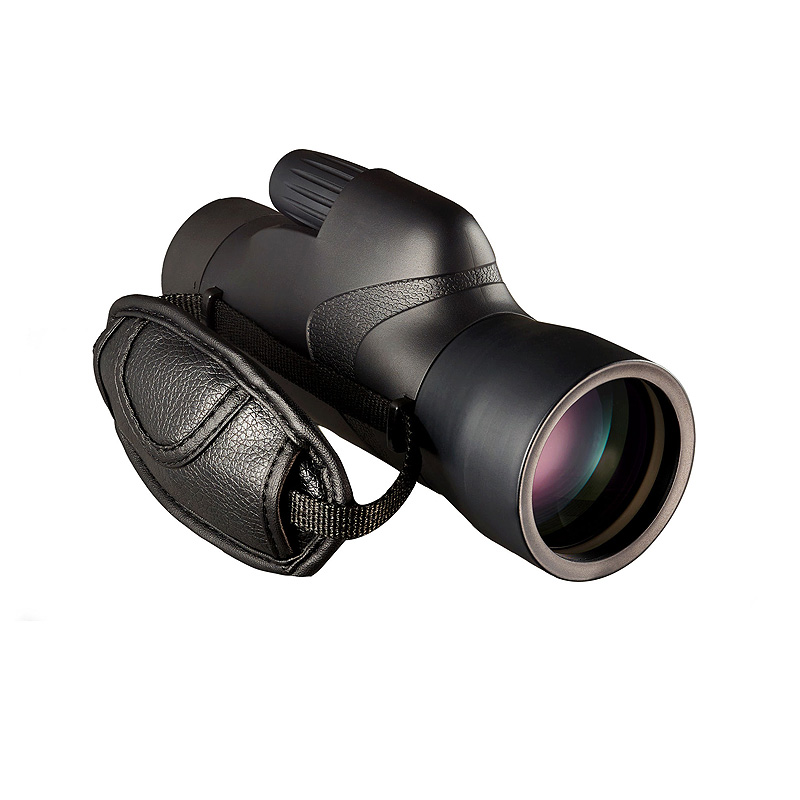

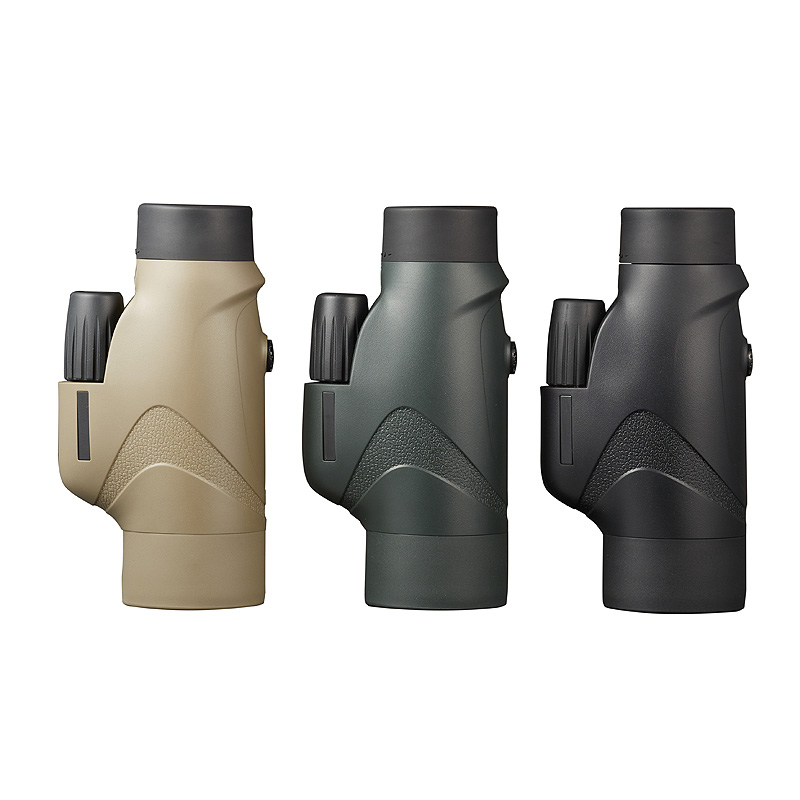

Monoculars
8x42 10x42 10x50 12x50
- Model:BWW4472
- Magnification: 10x
- Objective Lens: 50 mm
- Angle of View: 6.0 °
- Product description: Fully multi-coated optics maximize light transmission to produce bright and clear high-contrast images with accurate color and improved resolution
Key Features:
● Compact BK7 Roof Prisms
● Fully Multi-Coated Optics
● Wide 60° Apparent Angle of View
● Nitrogen Filled, Water and Fogproof
● Fast-Focusing Mechanism
● Textured Black Rubber Armoring
● Large User-Facing Focusing Knob
● Tripod Mountable with Optional Adapter
● Twist-Up Click-Stop Eyecup
Overview :
The combination of magnification and objective lens ensures an ultra-wide 60° apparent angle of view and large exit pupil, with enhanced light gathering ability versus smaller comparable models. Added to these features are anti-reflection fully multi-coated optics and BK7 roof prisms which maximize light transmission through the optical path, producing bright and clear high-contrast images with accurate color rendition.
The housing is made of a lightweight and durable plastic that is wrapped in a protective black rubber armor. Accents on the armor promote a more secure grip, helping to increase its handling in cold and wet weather.The optical tube is O-ring sealed to an IPX6-rating making it dustproof, and submersible to a depth of 3.3' (1m) for up to one hour. The optical tube is also nitrogen-filled to be resistant to internal fogging during extreme changes in temperature and environmental conditions. Construction details such as a twist-up eyecup and a standard 1/4"-20 tripod mount add to the comfort and usability of the monocular.
Optical Performance:
● Moderate 10x power magnifies view while maintaining a generous field of view and wide exit pupil
● 50mm objective lens boosts light-gathering capability versus smaller lenses to ensure bright images, even in challenging light
● BK7 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
● Anti-reflection fully multi-coated optics produce views with improved color rendition, contrast, and clarity
● Ultra-wide 60° apparent angle of view minimizes the appearance of visible hand shake that is common when holding high-power optics
● 315-foot field of view at 1000 yards
● Fully multi-coated optics maximize light transmission to produce bright and clear high-contrast images with accurate color and improved resolution
Use and Handling:
● Large textured user-facing focusing knob is easy to find and manipulate without looking and even when wearing gloves
● Convenient twist-up rubber eyecups for comfortable use with or without eyewear
● Standard 1/4"-20 tripod mount allows for hands-free use to reduce fatigue and hand shake that can interfere with viewings
● Long 21.5 mm eye relief helps to reduce eye strain and improve viewing comfort
● Wide 5 mm exit pupil will completely cover most pupils as they open and dilate as light fades
Construction Details:
● Textured rubber armoring with raised palm pads provides enhanced slip resistance in cold and wet weather
● Tethered lens covers offer maximum lens protection without the risk of losing them during use
● Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
● Textured black rubber armor protects against impacts while providing a slip-resistant grip
● Weight: 370 g
Performance :
Model: | BWW4472 | BWW4472 | BWW4472 | BWW4472 |
Specification | 8x42mm | 10x42mm | 10x50mm | 12x50mm |
Magnification | 8x | 10x | 10 x | 12 x |
Objective Lens | 42 mm | 42 mm | 50 mm | 50 mm |
Angle of View | 6.0° | 6.0° | 6.0 ° | 5.0 ° |
Field of View @ 1000m | 105 m /1000m | 105 m /1000m | 105 m /1000m | 88 m /1000m |
Field of View @ 1000yds | 315 ft /1000 yds | 315 ft /1000 yds | 315 ft /1000 yds | 264ft /1000 yds |
Close Focus Distance | 6 m | 6 m | 3 m | 5 m |
Exit Pupil | 4.2 mm | 4.2 mm | 5.0 mm | 4.2 mm |
Eye Relief | 21.5 mm | 16.0 mm | 21.5 mm | 16.0 mm |
Diopter Adjustment | Yes / ±4 | Yes / ±4 | Yes / ±4 | Yes / ±4 |
Focus system | Center | Center | Center | Center |
Prism Type | Roof (Bk7) | Roof (Bk7) | Roof (Bk7) | Roof (Bk7) |
Lens Coating | Fully Multi | Fully Multi | Fully Multi | Fully Multi |
Eyecups | Twist-Up | Twist-Up | Twist-Up | Twist-Up |
Waterproof | Yes / IPX-7 | Yes / IPX-7 | Yes / IPX6 | Yes / IPX6 |
Weight | 280 g | 280 g | 370 g | 370 g |
Size | 75x52x145 mm | 75x52x145 mm | 75x60x170 mm | 75x60x170 mm |
