Monoculars
12x50 10-30x50
- Model:BM4474
- Magnification: 10x
- Objective Lens: 50 mm
- Angle of View: 6.2 °
- Product description: 12x50 Monocular is designed as a highly portable field optic for long-range use even in challenging light conditions.
Key Features:
● Compact BK7 Roof Prisms
● Fully Multi-Coated Optics
● Wide 62° Apparent Angle of View
● Lightweight Plastic Chassis
● Textured Black Rubber Armoring
● Large User-Facing Focusing Knob
● Tripod Mountable via 1/4"-20 Mount
● Twist-Up Click-Stop Eyecup
Overview :
12x50 Monocular is designed as a highly portable field optic for long-range use even in challenging light conditions.
The combination of magnification and objective lens diameter ensures an ultra-wide 62° apparent angle of view and a large exit pupil, with enhanced light gathering ability versus smaller comparable models. Added to these features are anti-reflection fully multi-coated optics and BK7 roof prisms which maximize light transmission through the optical path, producing bright and clear high-contrast images with accurate color rendition.
The housing is made of a lightweight and durable plastic that is wrapped in a protective black rubber armor. Accents on the armor promote a more secure grip, helping to increase its handling in cold and wet weather. Despite its size and weight the performance capabilities of this optic, when combined with the standard 1/4"-20 tripod mount, make the Siege an ideal highly portable spotting scope in the field, at the range, or in a blind.
Easy to carry and use, these optical and design features result in an optic that presents an immersive observational experience in all light and weather conditions.
Optical Performance:
● Moderate 12x power magnifies view while maintaining a generous field of view and wide exit pupil
● 50mm objective lens boosts light-gathering capability versus smaller lenses to ensure bright images, even in challenging light
● BK7 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
● Anti-reflection fully multi-coated optics produce views with improved color rendition, contrast, and clarity
● Ultra-wide 62° apparent angle of view minimizes the appearance of visible hand shake that is common when holding high-power optics
● 173-foot field of view at 1000 yards
● Fully multi-coated optics maximize light transmission to produce bright and clear high-contrast images with accurate color and improved resolution
Use and Handling:
● Large textured user-facing focusing knob is easy to find and manipulate without looking and even when wearing gloves
● Convenient twist-up rubber eyecups for comfortable use with or without eyewear

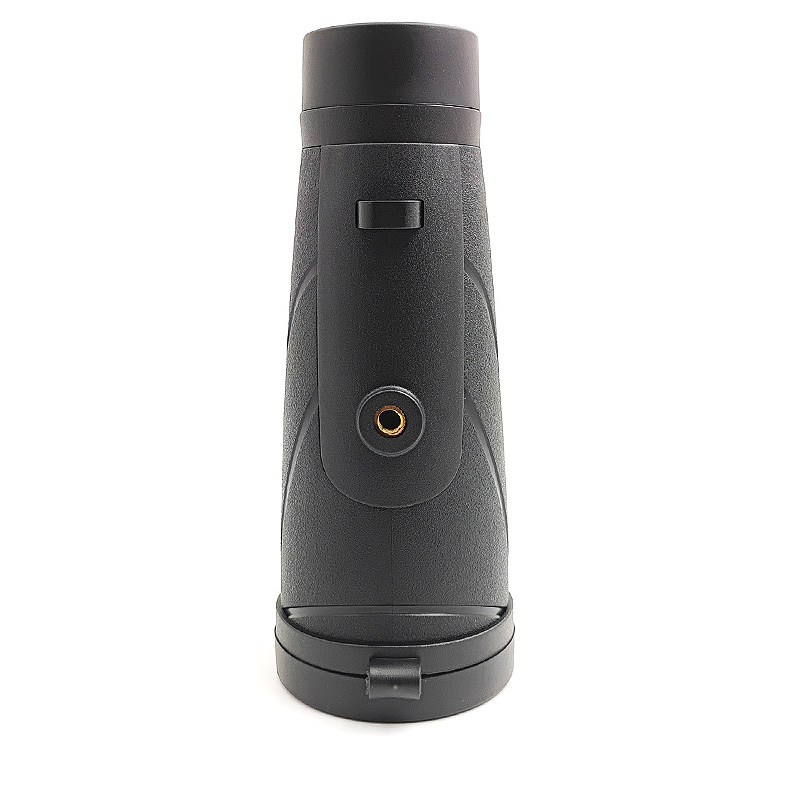

● Standard 1/4"-20 tripod mount allows for hands-free use to reduce fatigue and hand shake that can interfere with viewings
● Long 17 mm eye relief helps to reduce eye strain and improve viewing comfort
● Wide 4.1 mm exit pupil will completely cover most pupils as they open and dilate as light fades
Construction Details:
● Textured rubber armoring with raised palm pads provides enhanced slip resistance in cold and wet weather

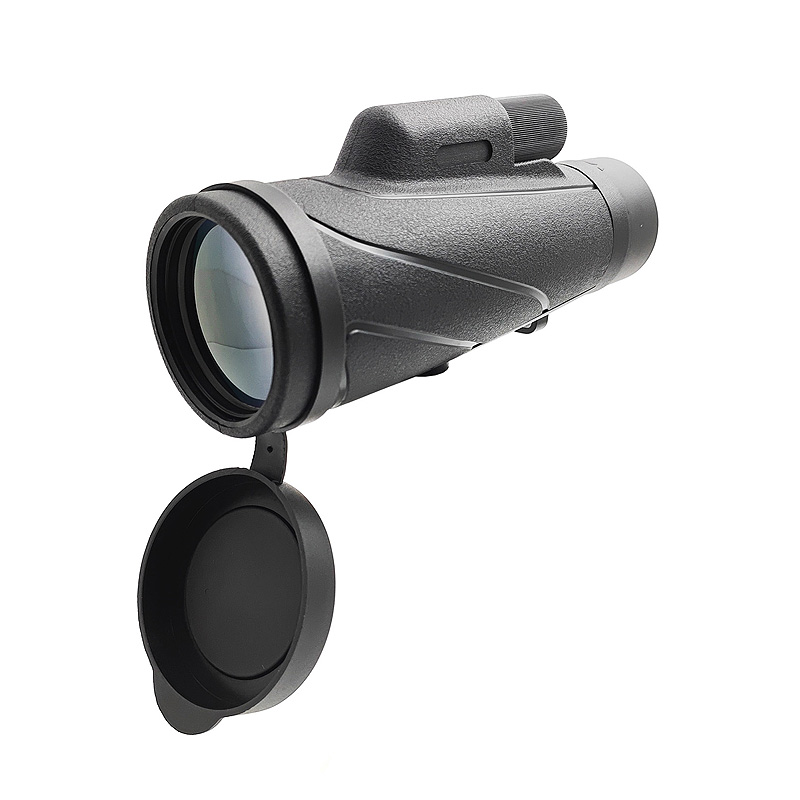

● Tethered lens covers offer maximum lens protection without the risk of losing them during use
● Textured black rubber armor protects against impacts while providing a slip-resistant grip
● Weight: 311 g
Performance :
Model: | BM4474 | BMZ4474 |
Specification | 12x50mm | 10-30x50mm |
Magnification | 12x | 10x - 30x |
Objective Lens | 50 mm | 50 mm |
Angle of View | 5.2° | 4.1° - 3.0° |
Field of View @ 1000m | 91 m /1000m | 72 m - 54 m |
Field of View @ 1000yds | 273 ft /1000 yds | 216 ft - 162 ft |
Close Focus Distance | 6 m | 7 m |
Exit Pupil | 4.1 mm | 5.0 - 1.6 mm |
Eye Relief | 17.0 mm | 20mm -13 mm |
Diopter Adjustment | Yes / ±4 | Yes / ±4 |
Focus system | Center | Center |
Prism Type | Roof (Bk7) | Roof (Bk7) |
Lens Coating | Fully Multi | Fully Multi |
Eyecups | Twist-Up | Twist-Up |
Waterproof | No | No |
Weight | 311 g | 340 g |
Size | 78x61x165 mm | 78x61x187 mm |
