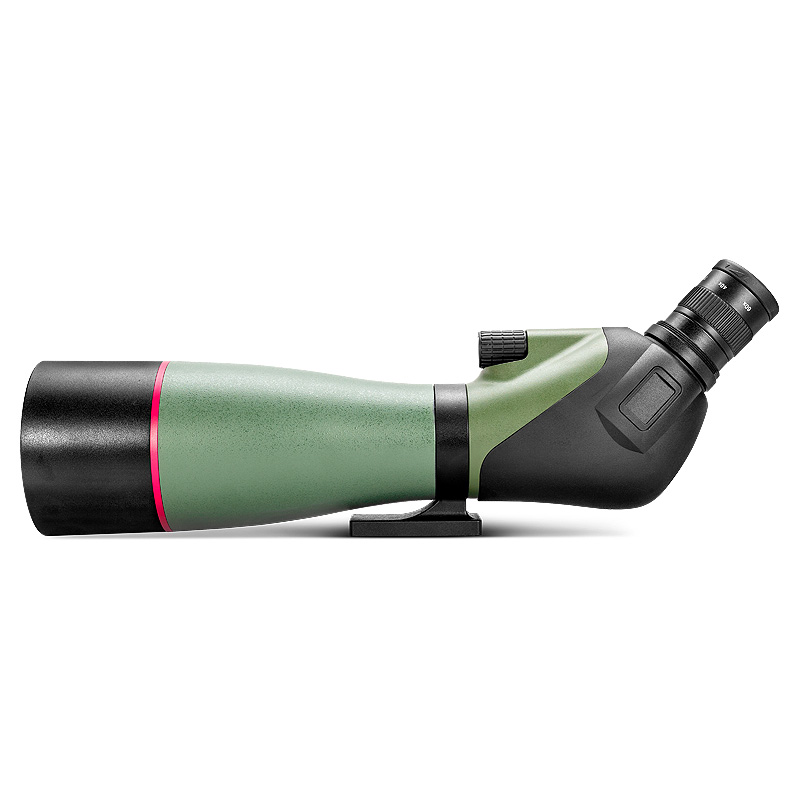

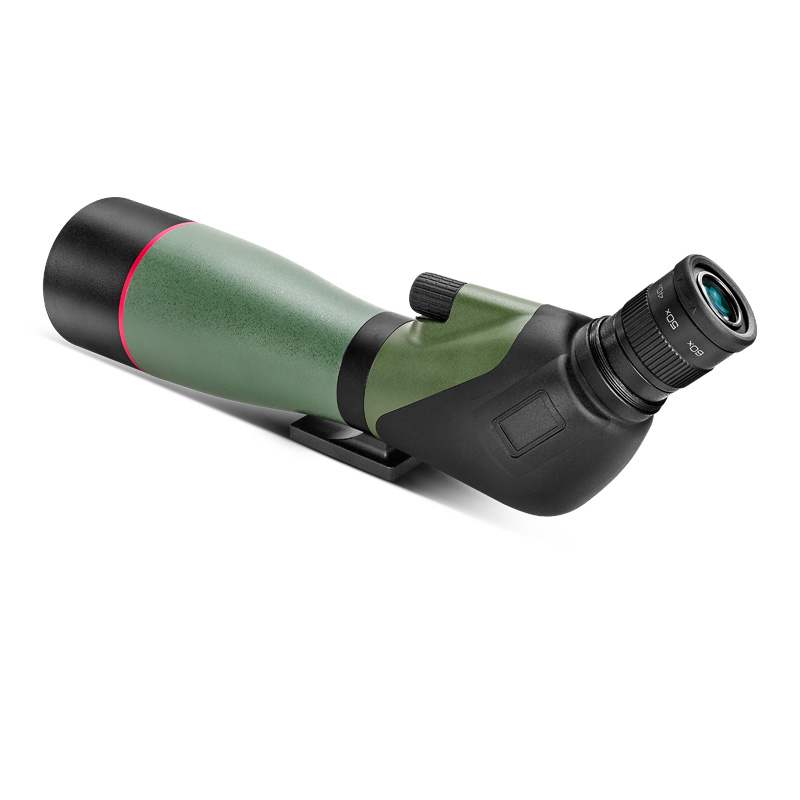

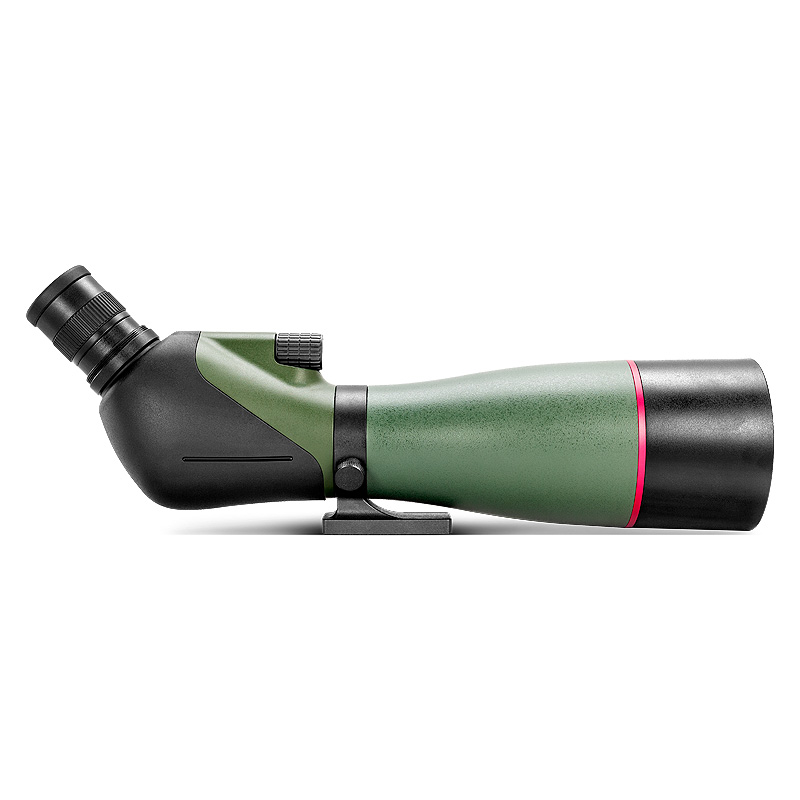

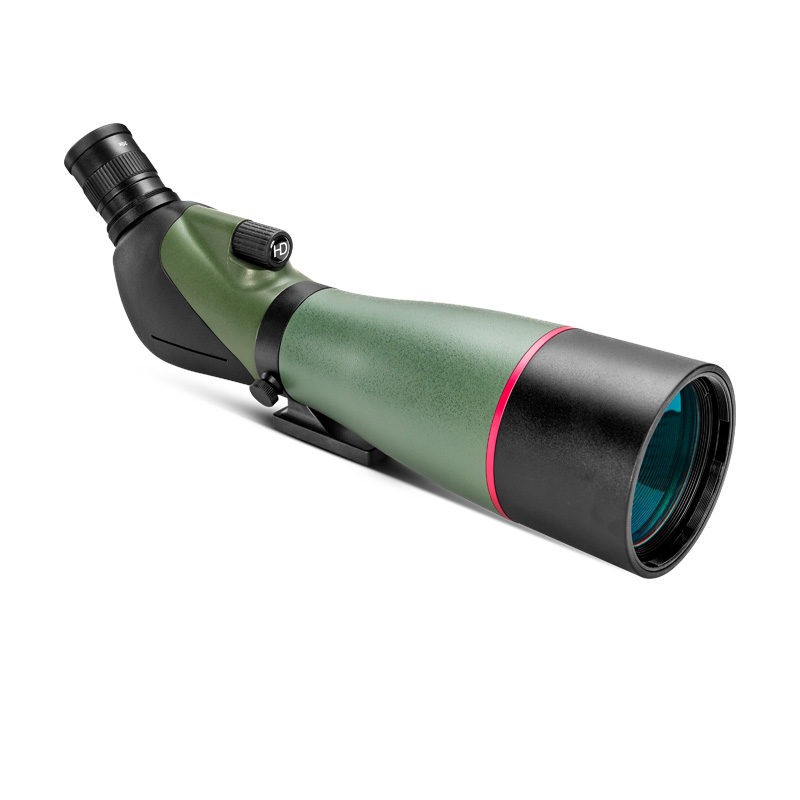

Spotting Scopes
20-60x80 ED
- Model:BSH649ED
- Magnification: 20x -60x
- Objective Lens: 80 mm
- Angle of View: 2.0°~ 1.0°
- Product description: 20-60X80ED combines a high-transmission optical path with a nitrogen-filled to deliver reliable imaging performance at low light and in unforgiving weather conditions.
Key Features:
● 45°Angled Viewing
● BAK4 Porro Prism System
● Fully Multi-Coated Optics
● 80mm Objective Lens
● Extra-Low Dispersion Glass Objective
● Nitrogen Filled, Waterproof & Fogproof
● 20-60x Eyepiece Magnification
● Rubber Armoring
● 1/4"-20 Rotating Tripod Collar
Overview :
The 20-60X80ED Spotting Scope combines a high-transmission optical path with a nitrogen-filled to deliver reliable imaging performance at low light and in unforgiving weather conditions. At the core of the fully multi-coated optics, including BAK4 prisms and an extra-low dispersion (ED) glass objective that minimizes chromatic aberration and maximizes light gathering.Multiple layers of Celestron's proprietary XLT coating on each lens preserve brightness and transmit contrast-rich images to the eyepiece.This spotting scope includes a 20-60x eyepiece that is ideal for intermediate- to long-range glassing.The broad magnification range, comfortable 20mm eye relief, and twist-up rubber eyecup make this zoom eyepiece well suited for long-duration observations.The scope's standard 1.25" eyepiece mount will accept most astronomy eyepieces, which enables a near-infinite number of optical configurations.
Optical Performance:
● 20-60x eyepiece magnification
● 80mm objective lens
● BAK4 Porro prism system
● Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness
● 105 - 53' field of view at 1000 yards
● Long 17 mm eye relief
● 4.0-1.3mm exit pupil
Use and Handling :
● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Twist-up rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Nitrogen filled and O-ring sealed for a water and fogproof performance
● Rubberized covering provides for a sure grip
● Waterproof
● Weight: 1410g
Performance :
● 45°Angled Viewing
● BAK4 Porro Prism System
● Fully Multi-Coated Optics
● 80mm Objective Lens
● Extra-Low Dispersion Glass Objective
● Nitrogen Filled, Waterproof & Fogproof
● 20-60x Eyepiece Magnification
● Rubber Armoring
● 1/4"-20 Rotating Tripod Collar
Overview :
The 20-60X80ED Spotting Scope combines a high-transmission optical path with a nitrogen-filled to deliver reliable imaging performance at low light and in unforgiving weather conditions. At the core of the fully multi-coated optics, including BAK4 prisms and an extra-low dispersion (ED) glass objective that minimizes chromatic aberration and maximizes light gathering.Multiple layers of Celestron's proprietary XLT coating on each lens preserve brightness and transmit contrast-rich images to the eyepiece.This spotting scope includes a 20-60x eyepiece that is ideal for intermediate- to long-range glassing.The broad magnification range, comfortable 20mm eye relief, and twist-up rubber eyecup make this zoom eyepiece well suited for long-duration observations.The scope's standard 1.25" eyepiece mount will accept most astronomy eyepieces, which enables a near-infinite number of optical configurations.
Optical Performance:
● 20-60x eyepiece magnification
● 80mm objective lens
● BAK4 Porro prism system
● Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness
● 105 - 53' field of view at 1000 yards
● Long 17 mm eye relief
● 4.0-1.3mm exit pupil
Use and Handling :
● Eyepiece set 45° for comfortable viewing position whether sitting, standing, or lying prone
● Dual focusing knob for fine focusing
● Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
● Twist-up rubber eyecup for use with or without eyewear
● 1/4""-20 mount to fit most photo/video/field tripods and quick-release plates
Construction Details:
● Ergonomic and compact construction
● Nitrogen filled and O-ring sealed for a water and fogproof performance
● Rubberized covering provides for a sure grip
● Waterproof
● Weight: 1410g
Performance :
Model: | BSH649ED |
Specification | 20-60x80mm |
Magnification | 20x -60x |
Objective Lens Diameter | 80 mm |
Angle of View | 2.0°~ 1.0° |
Field of View | 35 -17.5 m @ 1000 m |
Field of View | 105 - 53 ft @1000 yds |
Minimum Focus Distance | 5.5 m |
Exit Pupil | 4.0 - 1.3 mm |
Eye Relief | 17 - 17 mm |
Number Of Lens | 9Pcs/ 6 Groups |
Focus Type | Center |
Prism Type | Roof (BAK-4) |
Lens Coating | Fully Multi |
Eyecups | Twist-up |
Waterproof | Yes / IPX-7 |
Weight | 1410 g |
Size | 420x100x160 mm |
